- Disconnect and isolate the negative battery cable.
- Remove the instrument panel from the vehicle (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL) .

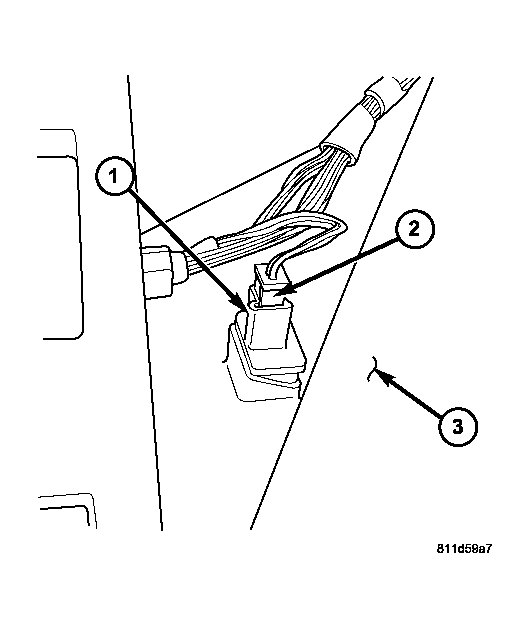

- Disconnect the wire harness connector from the evaporator temperature sensor located on the top of the HVAC housing. See Fig 1.
- Remove the evaporator temperature sensor from the HVAC housing.
| 1 - EVAPORATOR TEMPERATURE SENSOR |
| 2 - WIRE HARNESS CONNECTOR |
| 3 - HVAC HOUSING |
