Blower Motor Relay: Removal

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Remove the cover from the integrated power module (IPM) located in the engine compartment. See Fig 1.
NOTE: Refer to the fuse and relay map on the IPM cover for front blower motor relay location.
Remove the front blower motor relay from the IPM.

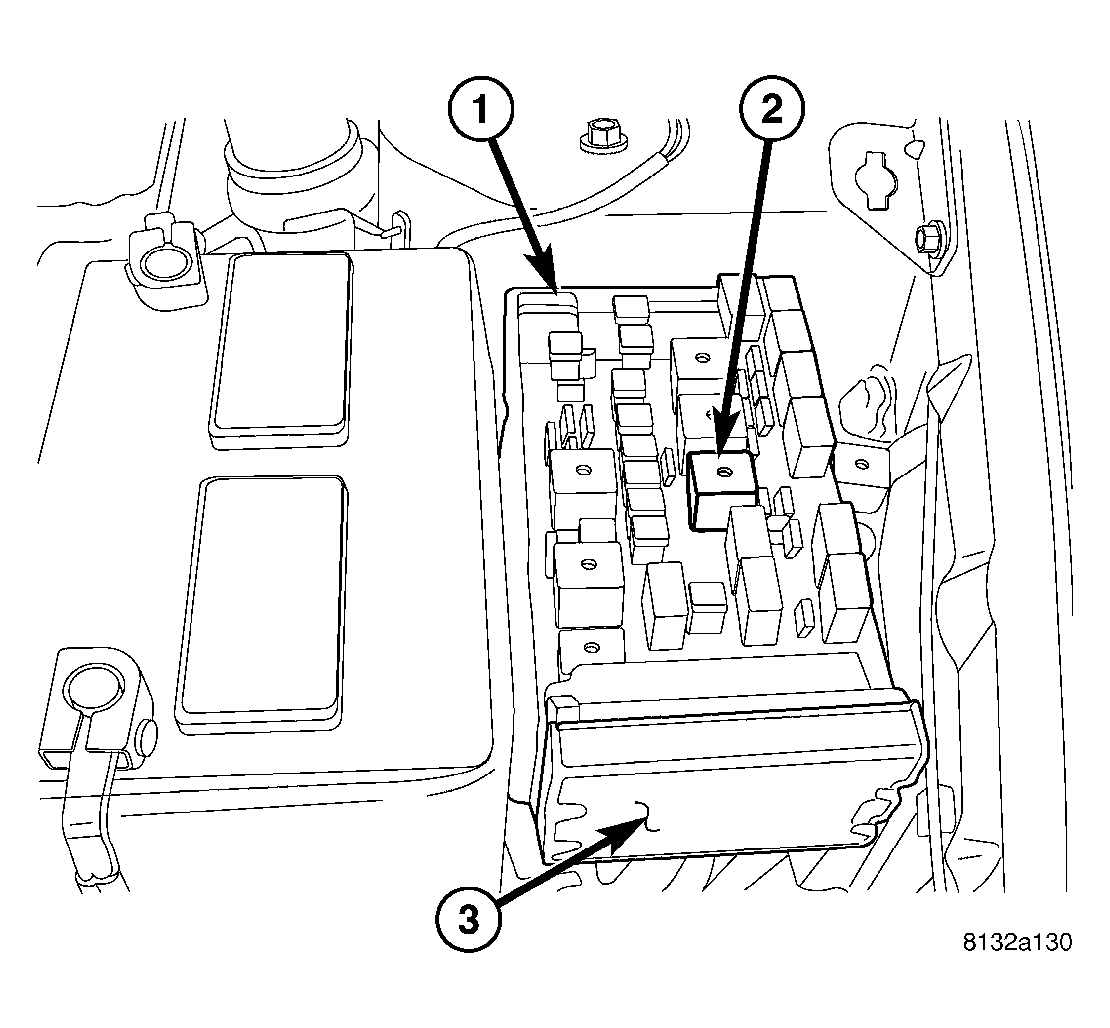

Fig 1: Front Blower Motor Relay

Courtesy of DAIMLERCHRYSLER CORP.

1 - INTEGRATED POWER MODULE (IPM)

2 - FRONT BLOWER MOTOR RELAY

2 - FRONT CONTROL MODULE (FCM)
