A/C Heater Control: Removal
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.
- Disconnect and isolate the negative battery cable.
- Remove the center bezel from the instrument panel and place it on a workbench (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL) .

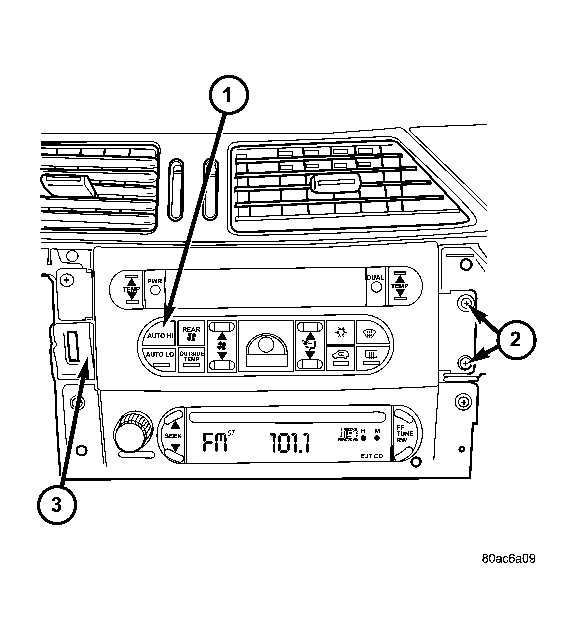

- If the vehicle is equipped with the automatic temperature control (ATC) heating-A/C system, disconnect the infrared sensor connector from the back of the A/C-heater control. See Fig 1.
- Remove the six screws that secure the A/C-heater control to the back of the instrument panel center bezel and remove the control.
| 1 - INFRARED SENSOR CONNECTOR (ATC ONLY) |
| 2 - INFRARED SENSOR HARNESS (ATC ONLY) |
| 3 - A/C-HEATER CONTROL |
| 4 - SCREW (6) |
| 5- INSTRUMENT PANEL CENTER BEZEL |
