A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the cover from the integrated power module (IPM) located in the engine compartment. See Fig 1.
    NOTE: Refer to the fuse and relay map on the inside of the IPM cover for A/C compressor clutch relay location.
  3. Remove the A/C compressor clutch relay from the IPM.

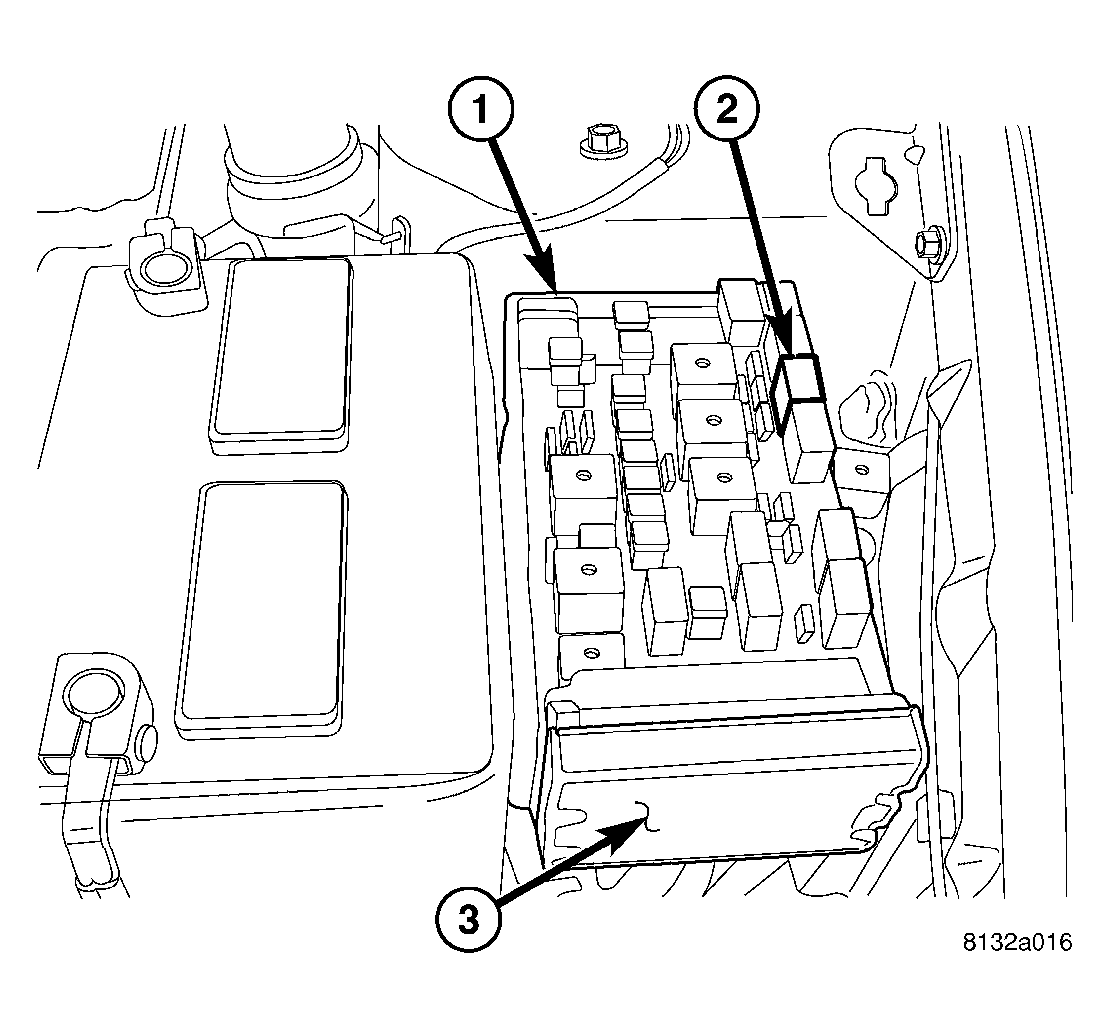

Fig 1: A/C Compressor Clutch Relay
GC0024093Courtesy of DAIMLERCHRYSLER CORP.
1 - INTEGRATED POWER MODULE (IPM)
2 - A/C COMPRESSOR CLUTCH RELAY
3 - FRONT CONTROL MODULE
