Transverse Bracket: Description
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

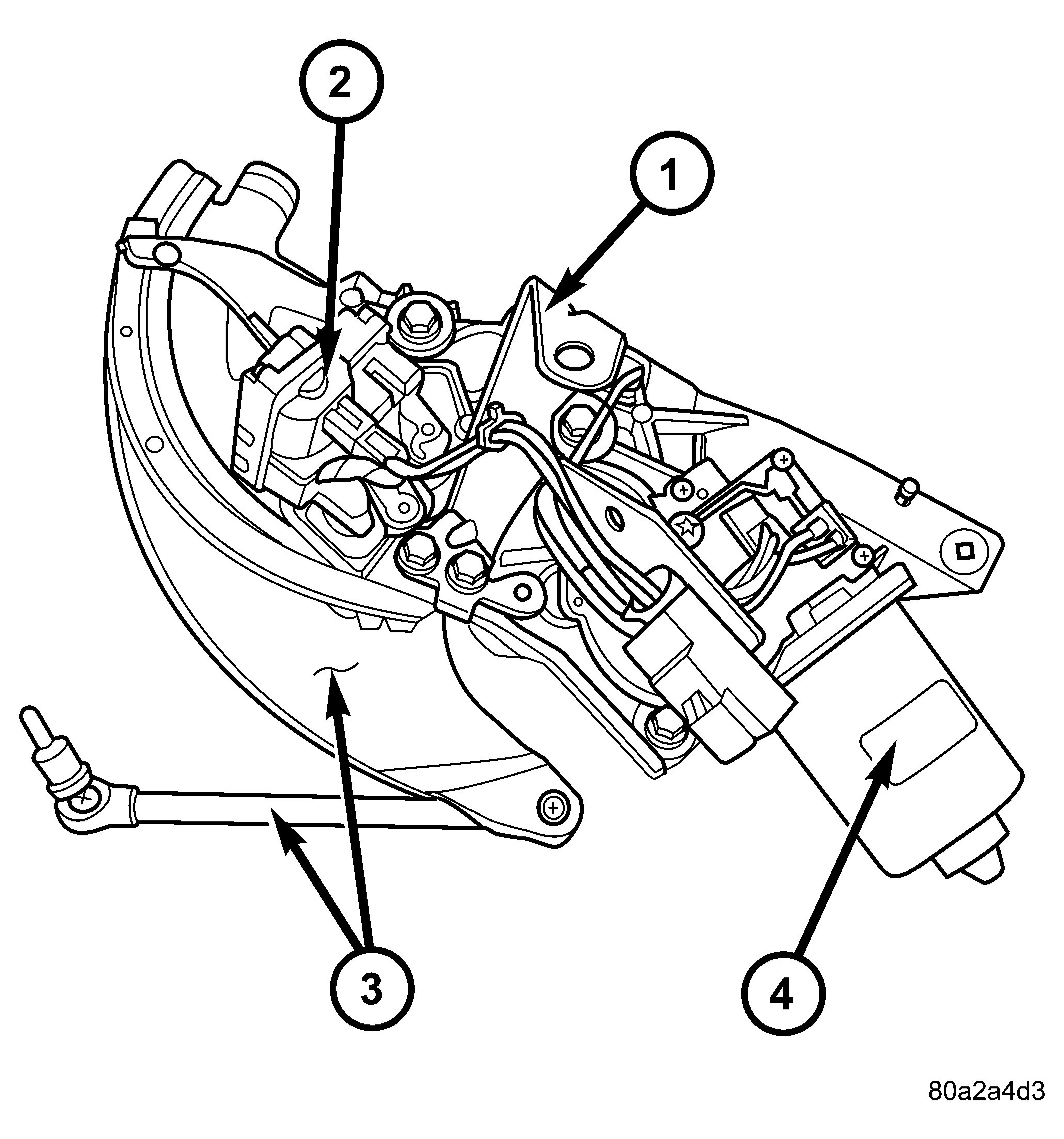

| 1 - TRANSVERSE BRACKET |
| 2 - ENGAGE ACTUATOR |
| 3 - LIFT GEAR AND ROD ASSEMBLY |
| 4 - LIFTGATE MOTOR |
The transverse bracket is used to support and secure the power liftgate gear/motor assembly to the left rear body D-pillar. The transverse bracket is a serviceable power liftgate component. See Fig 1.
