Heat Shields: Installation

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

Position heat shield to underbody or engine component. See Fig 1, Fig 2 and Fig 3.
Install and tighten heat shield fasteners. See Fig 1, Fig 2 and Fig 3
Inspect heat shield to exhaust system clearances and adjust as necessary. (Refer to EXHAUST SYSTEM - SPECIFICATIONS)

Lower the vehicle.

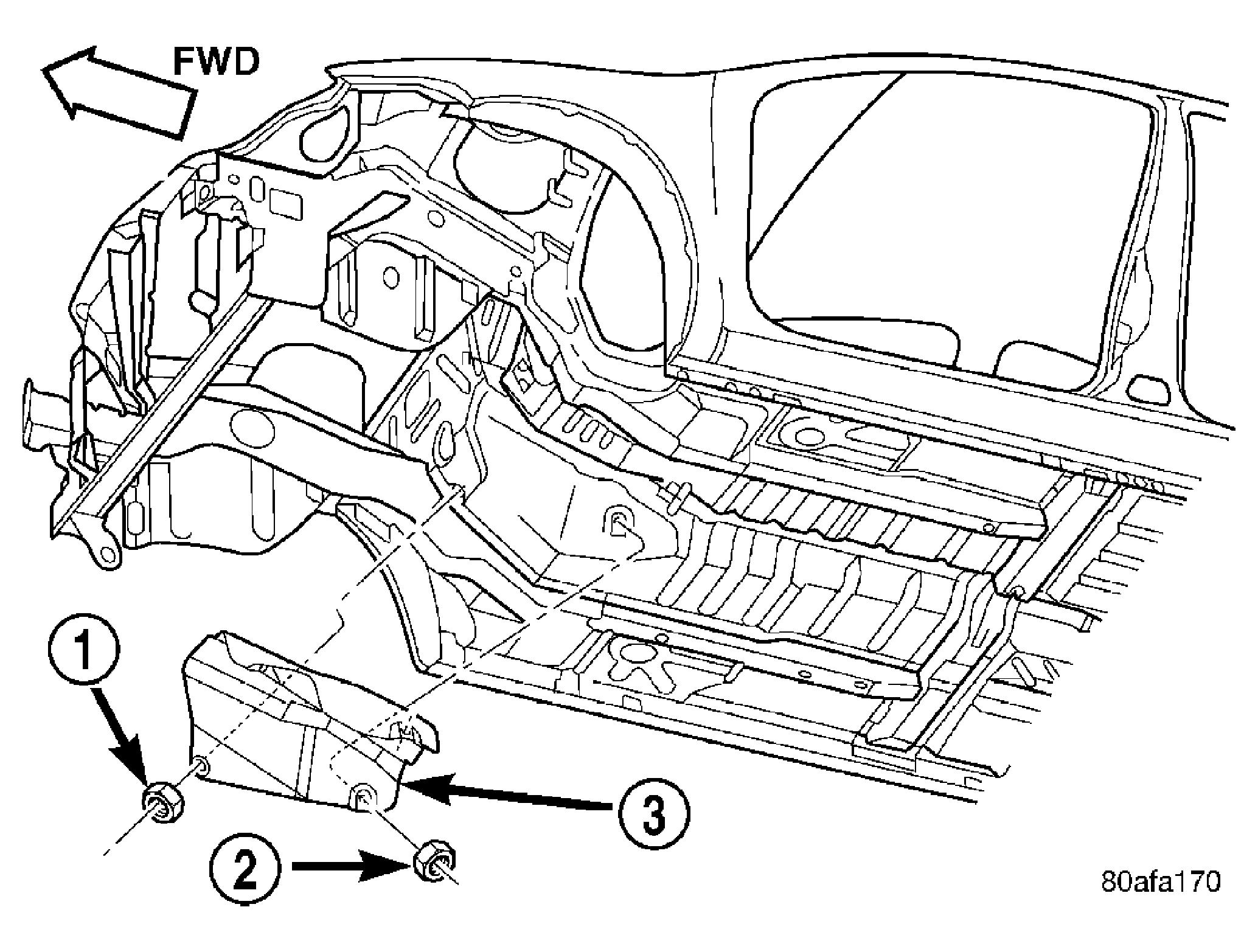

Fig 1: Heat Shield - Catalytic Converter

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUT

2 - NUT

3 - HEAT SHIELD

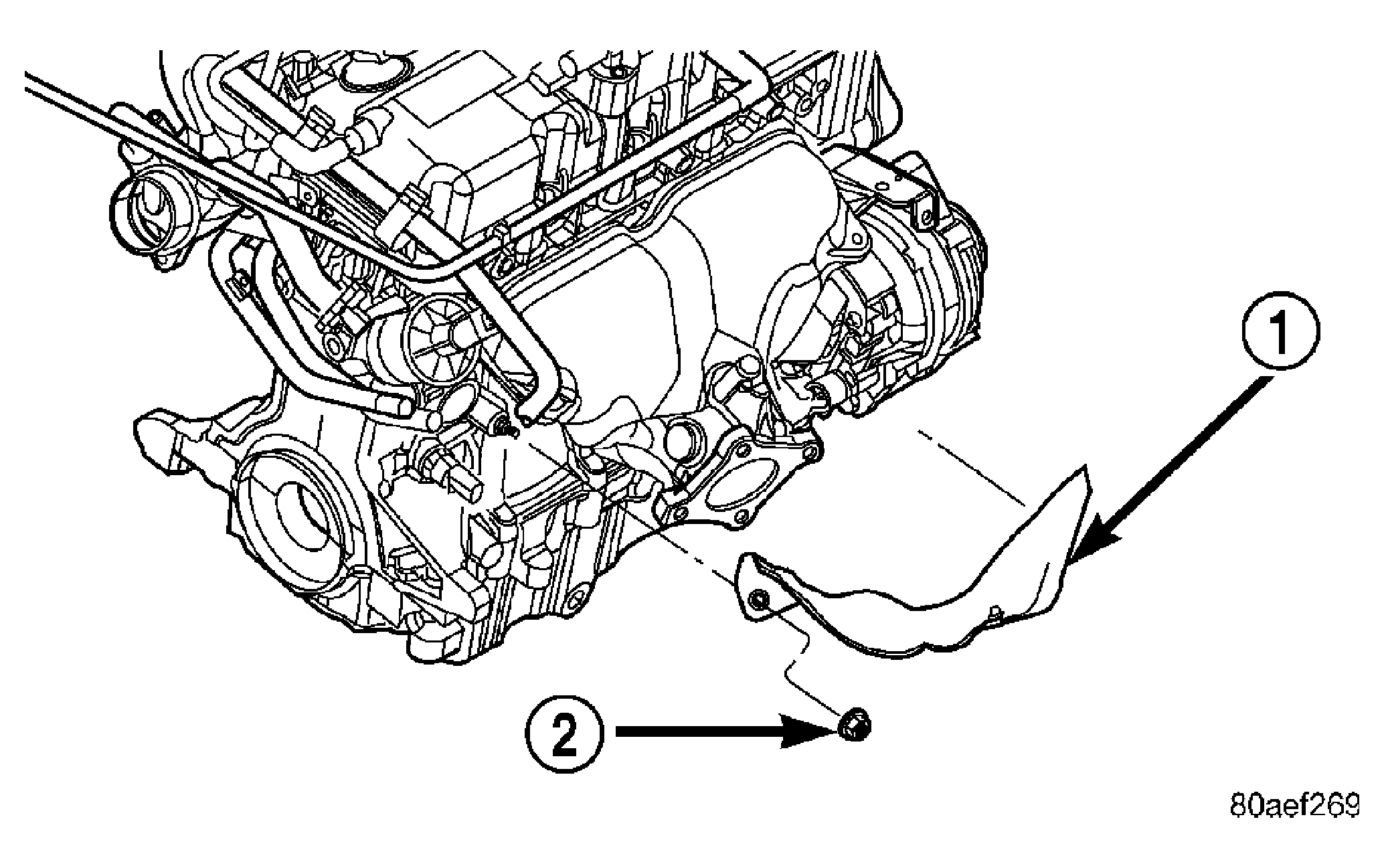

Fig 2: Heat Shield - Engine Wire Harness

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD

2 - NUT - 11 N.m (100 in. lbs.)

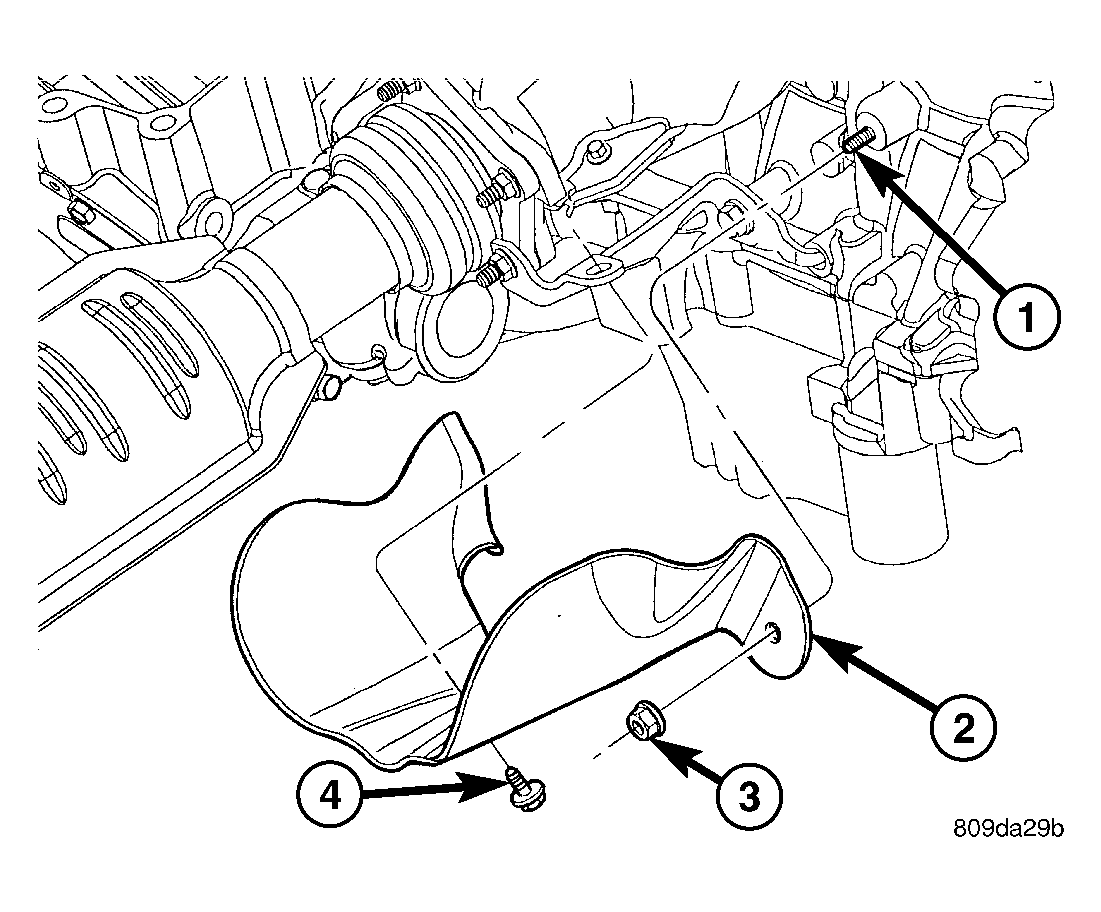

Fig 3: Heat Shield - Engine Wire Harness

Courtesy of DAIMLERCHRYSLER CORP.

1 - STUD

2 - HEAT SHIELD - WIRING

3 - NUT - 11 N.m (100 in. lbs.)

4 - BOLT - 28 N.m (250 in. lbs.)

Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
Remove old adhesive and clean heat shield area with Mopar® Adhesive Cleaner.
Apply new heat shield to dry surface.
