Circuit Protection Devices
WARNING: This page is about a different car, the 2005 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Integrated Power Module |
At left front fender. See Figure. |
| Power Window Circuit Breaker |

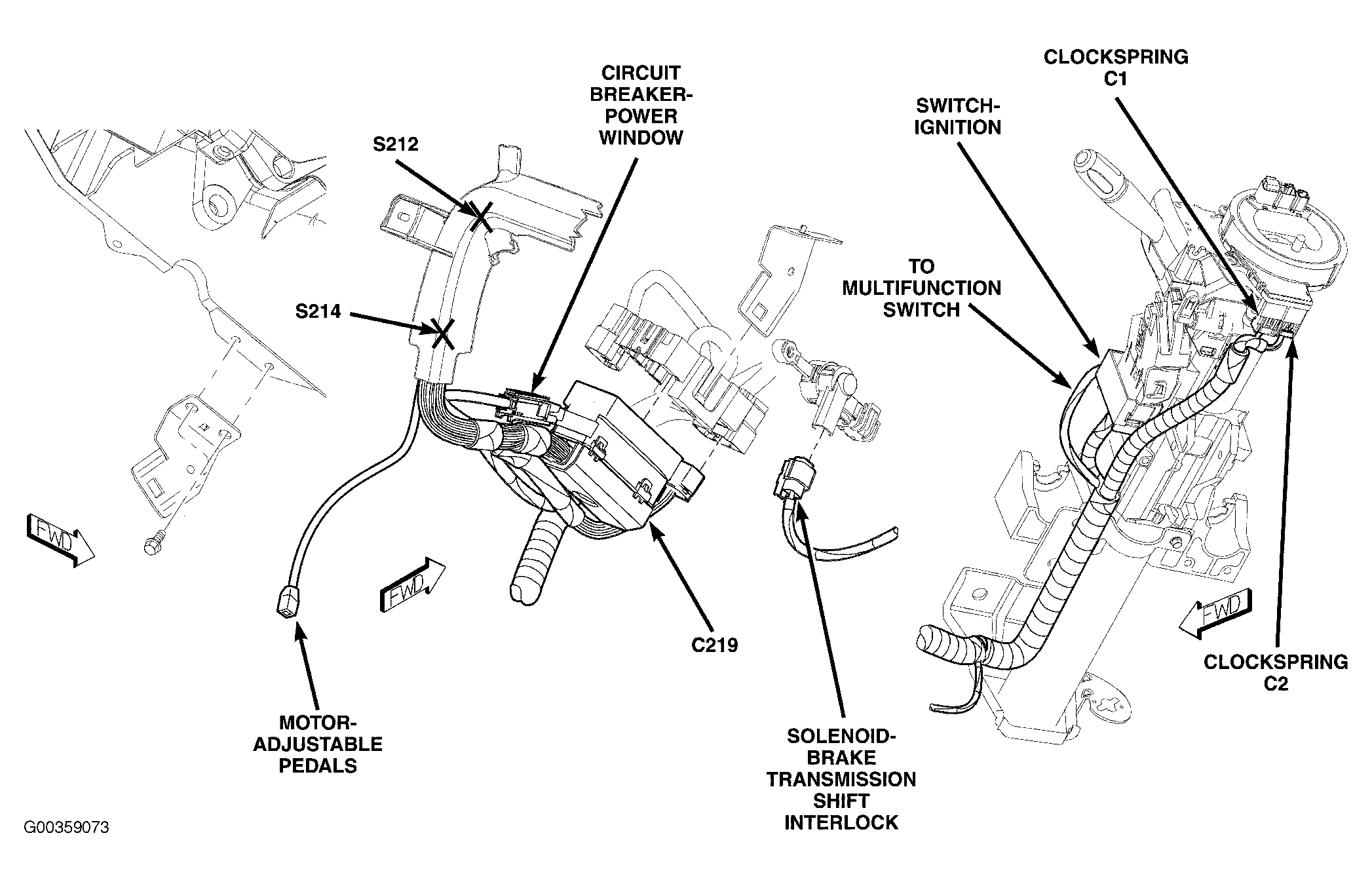

Left side of steering column. See Figure. |
