Sentry Key Immobilizer Module - Black 6 Way

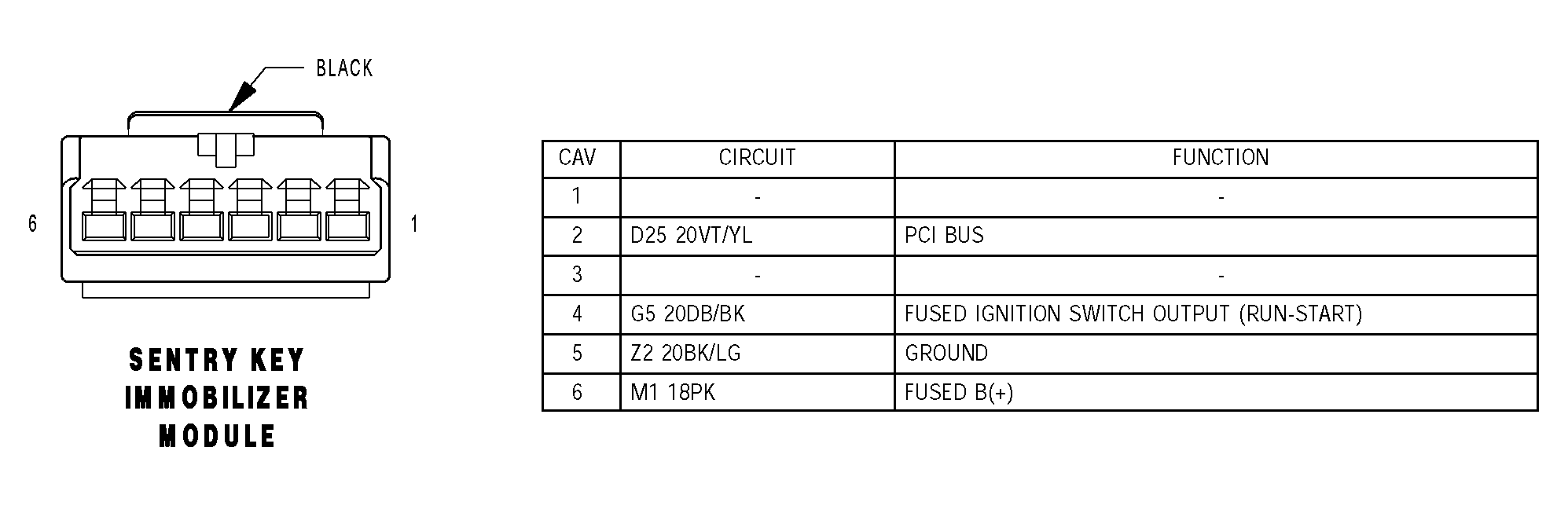

Fig 1: Sentry Key Immobilizer Module - Black 6 Way

G04548963

Courtesy of DAIMLERCHRYSLER CORP.
