Powertrain Control Module C4 (NGC) - Black/Green 38 Way

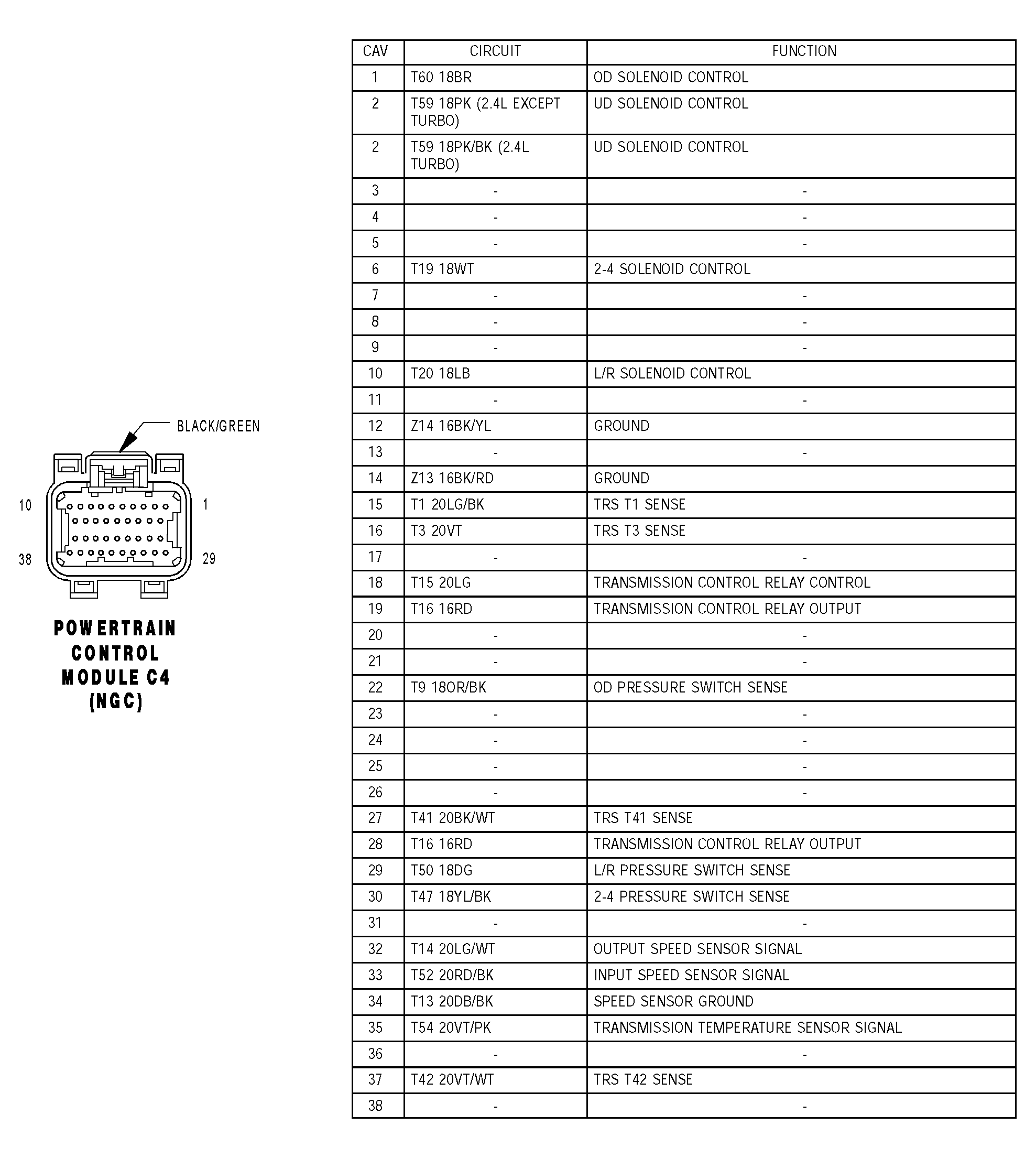

Fig 1: Powertrain Control Module C4 (NGC) - Black/Green 38 Way

G04548960

Courtesy of DAIMLERCHRYSLER CORP.
