Powertrain Diagnostic Procedures - Component Testing
>>
Connector PINOUTS
>>
Powertrain Control Module C2 (NGC) - Black/Orange 38 Way
Powertrain Control Module C2 (NGC) - Black/Orange 38 Way

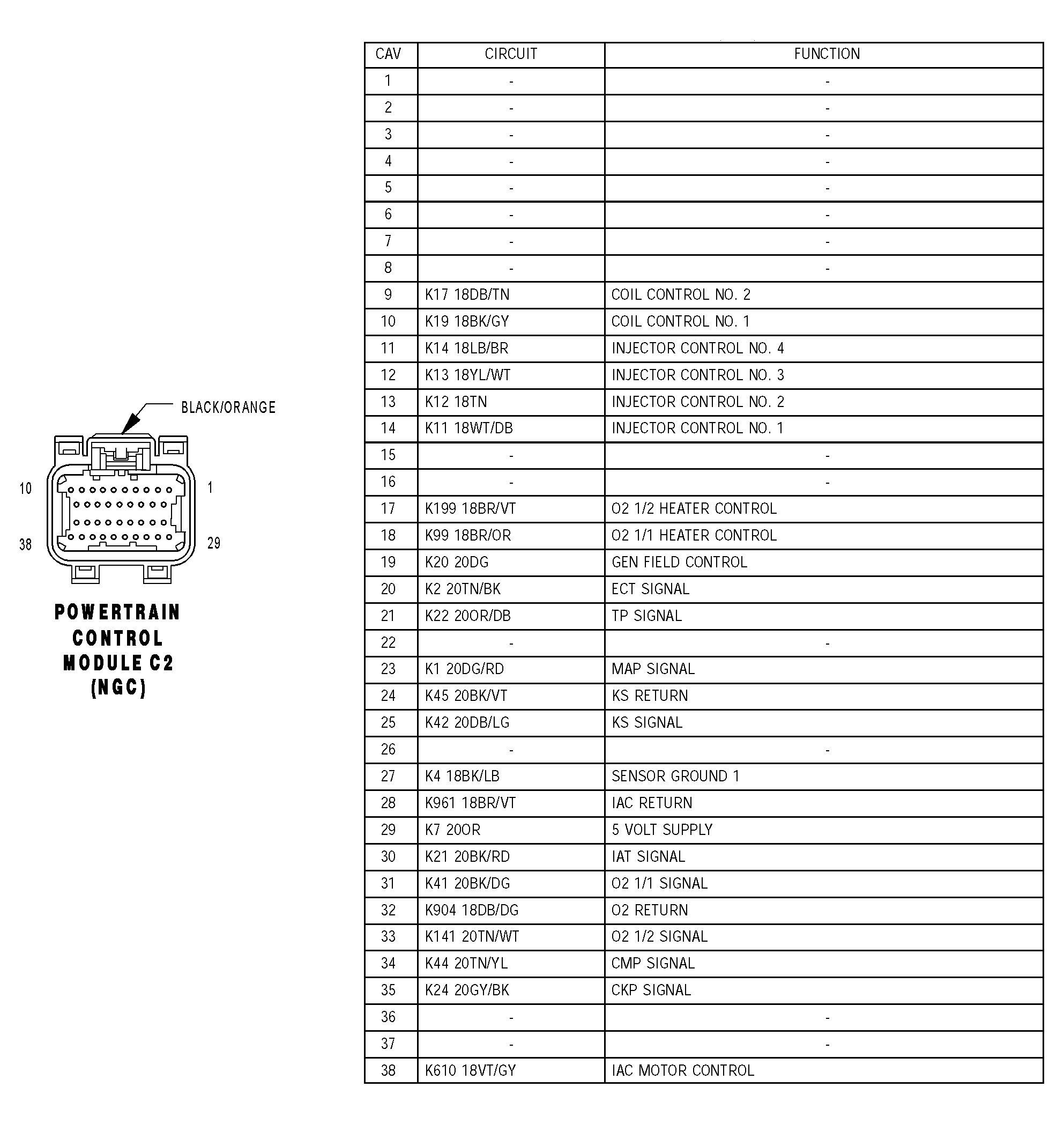

Fig 1: Powertrain Control Module C2 (NGC) - Black/Orange 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
