Chrysler
>>
2005
>>
PT Cruiser Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures - Component Testing
>>
Connector PINOUTS
>>
Accelerator Pedal Position Sensor (1.6L/Diesel) - 10 Way
Accelerator Pedal Position Sensor (1.6L/Diesel) - 10 Way

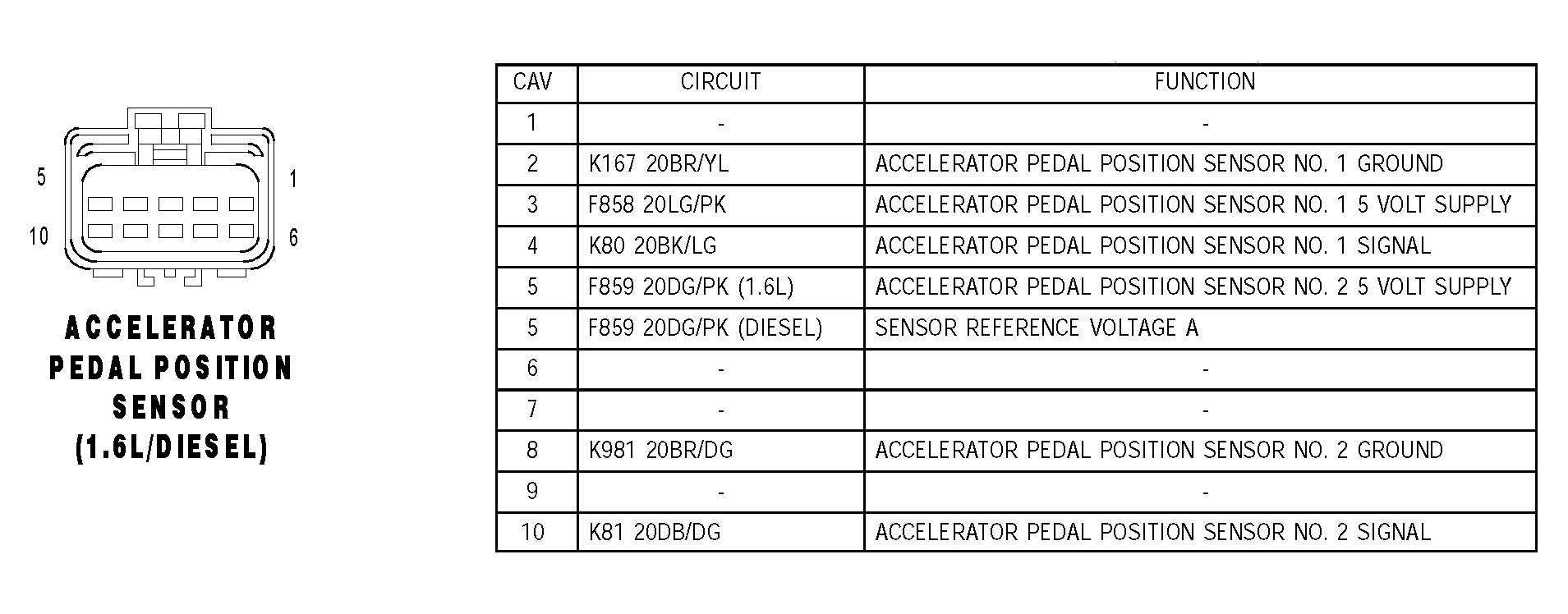

Fig 1: Accelerator Pedal Position Sensor (1.6L/Diesel) - 10 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
