Evaporative Emission System Schematic

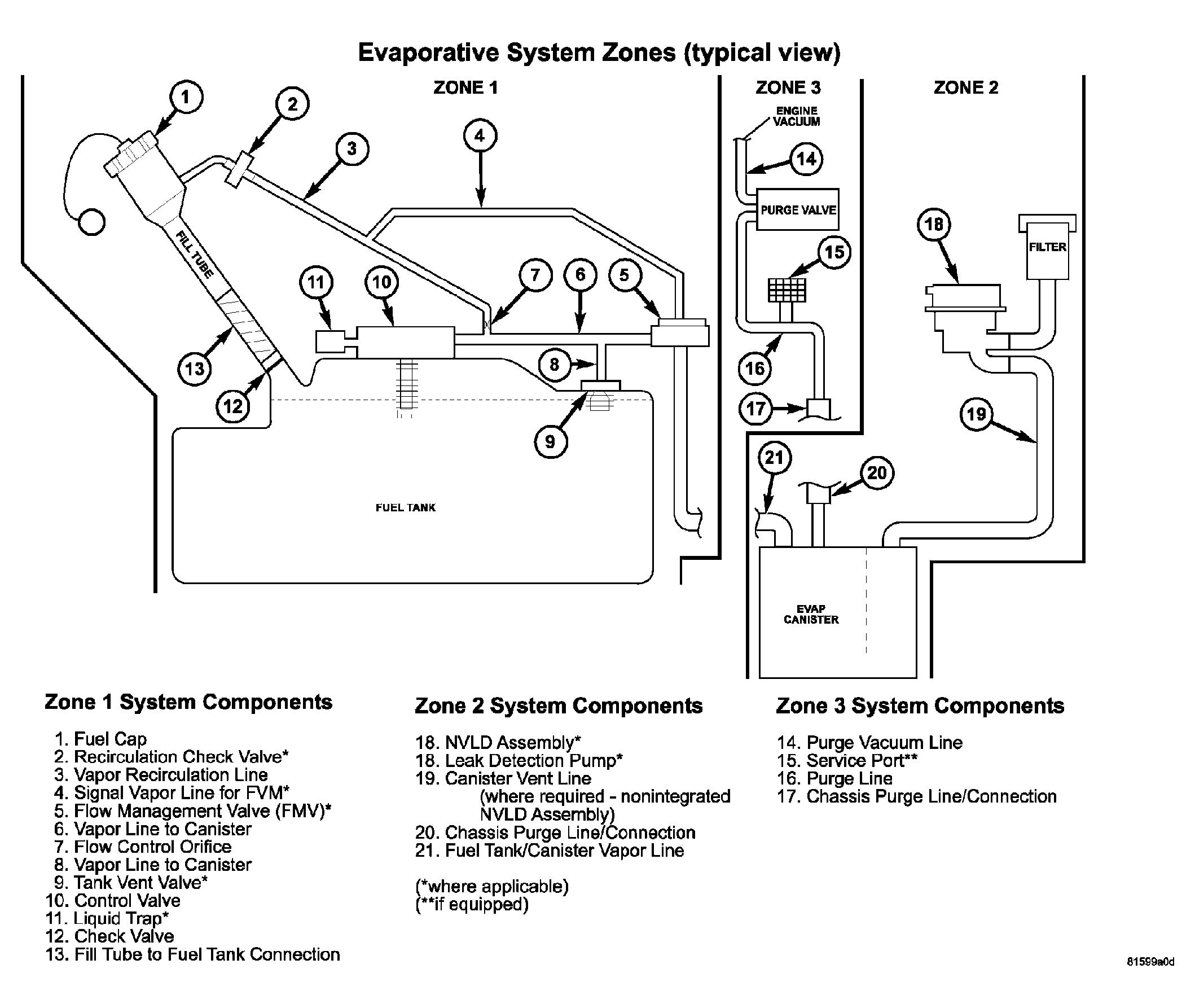

Fig 1: Identifying Evaporative System Zone Chart

G04548988

Courtesy of DAIMLERCHRYSLER CORP.
