Camshaft Sensor & Crankshaft Sensor Scope Pattern (Typical)

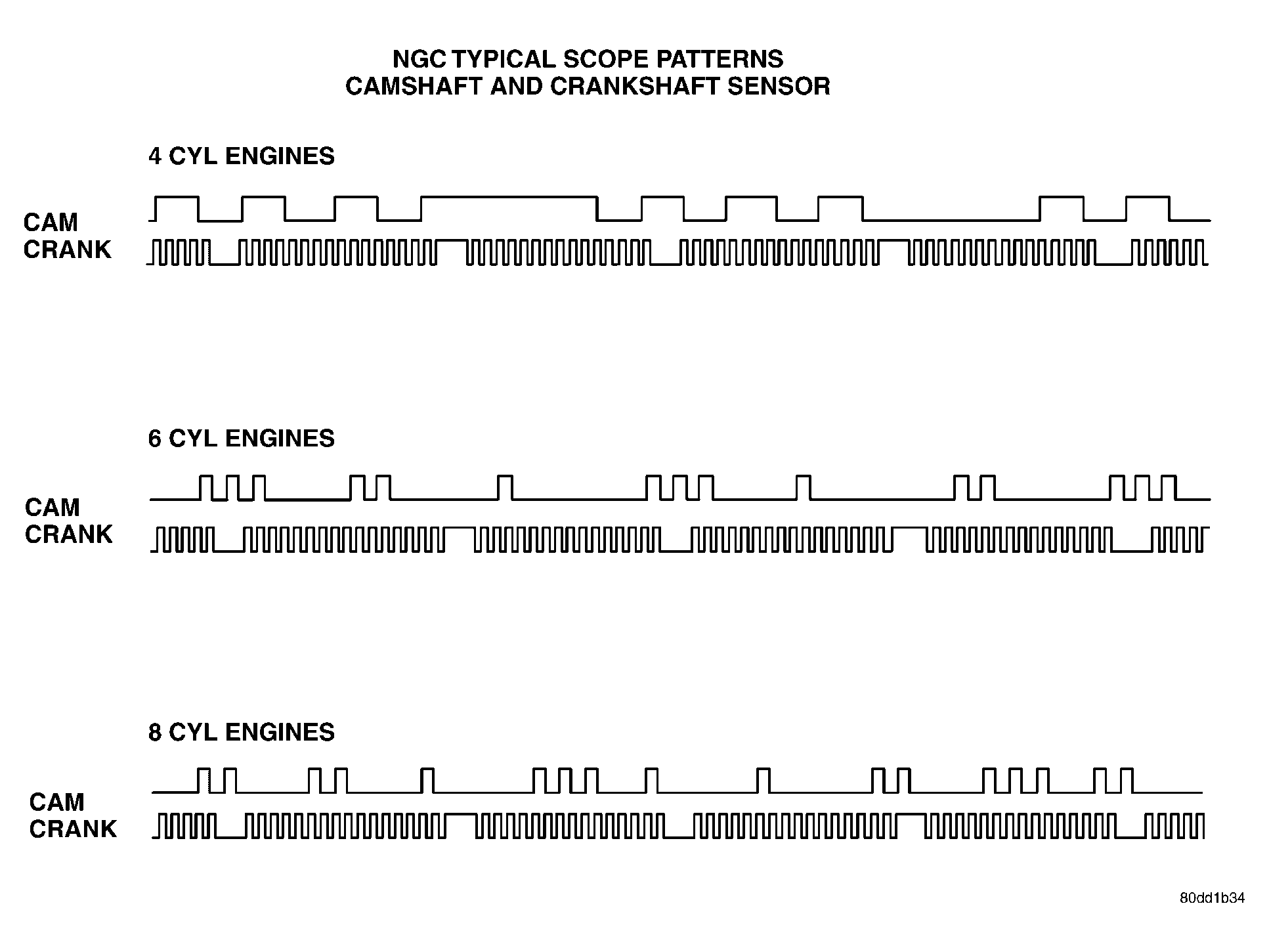

Fig 1: Camshaft And Crankshaft Sensor Scope Pattern Chart
G04548978Courtesy of DAIMLERCHRYSLER CORP.
