Installation - 2.0, 2.4L

  1. Attach electrical connectors to idle air control motor and throttle position sensor.
  2. Make sure that the throttle body gasket is in place in the manifold.
  3. Position throttle body on intake and install mounting bolts. See Figure. Do Not tighten bolts at this time.
  4. Install throttle cable bracket. Do Not tighten bolts at this time.
  5. Tighten throttle body bolts to 11.8 +/-2.25 N.m (105 +/-20 in. lbs.) torque.
  6. Tighten throttle cable bracket bolts to 11.8 +/-2.25 N.m (105 +/-20 in. lbs.) torque.
  7. Install EVAP purge hose to throttle body nipple.
  8. Install cable housing(s) retainer tabs into bracket. See Figure.

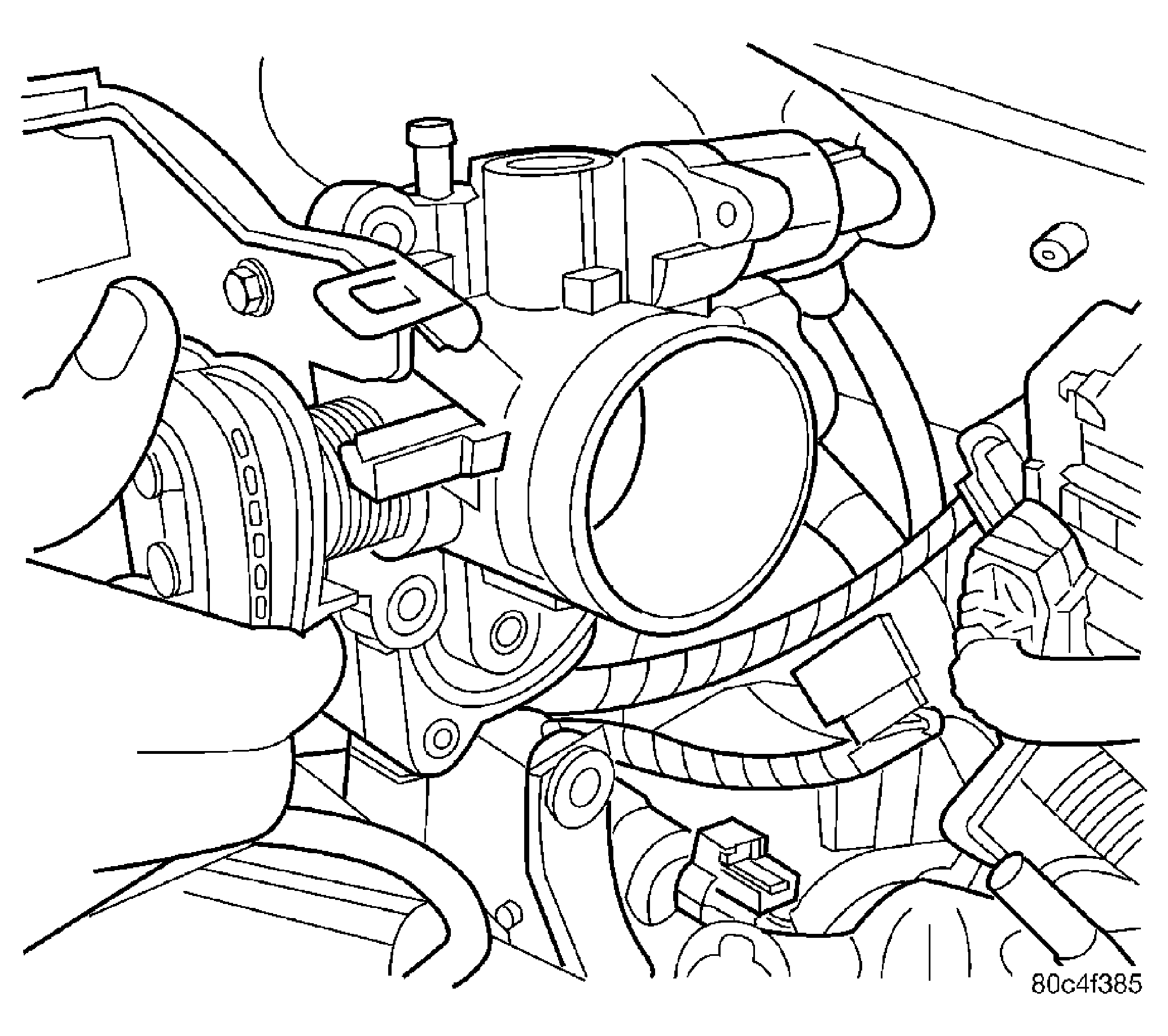

  9. Install throttle body cables by rotating the throttle cam forward to the wide open position. See Figure.
  10. Install throttle control shield.
  11. Install the negative battery cable.
  12. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
