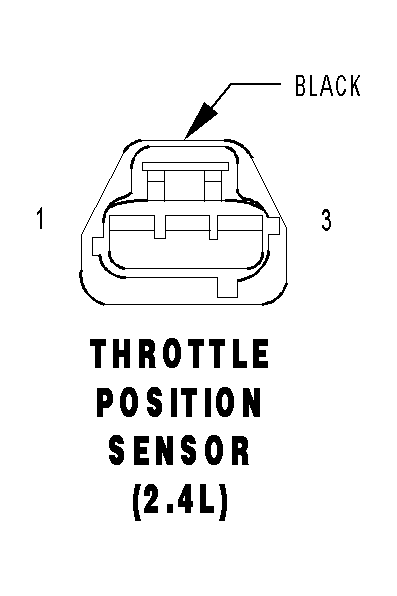

Throttle Position Sensor (2.4L) Connector End View

THROTTLE POSITION SENSOR (2.4L) - BLACK 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K7 20OR	5 VOLT SUPPLY
2	K22 20OR/DB	TP SIGNAL
3	K4 20BK/LB	SENSOR GROUND 1
