Right Turn Signal Indicator Connector End View

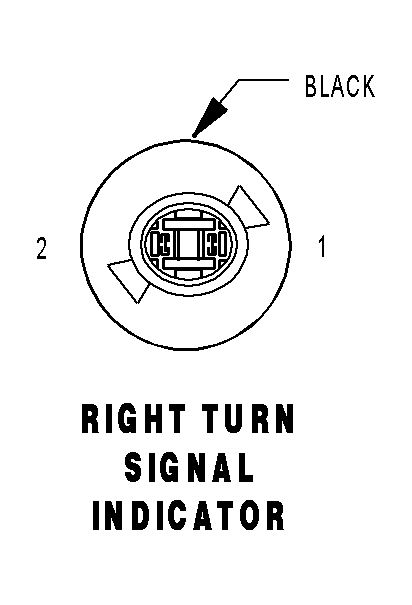

Right Turn Signal Indicator Connector End View
RIGHT TURN SIGNAL INDICATOR - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L60 20TN
RIGHT TURN SIGNAL (IN)
2
Z1 20BK
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
