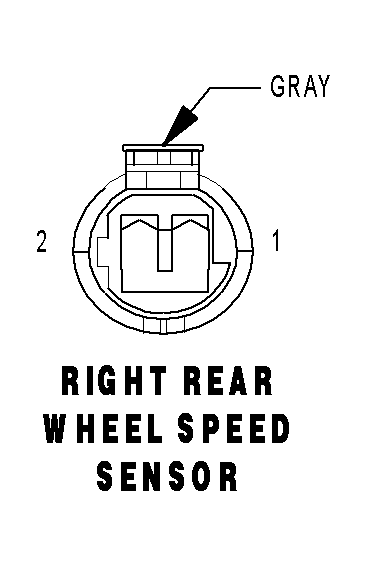

Right Rear Wheel Speed Sensor Connector End View
RIGHT REAR WHEEL SPEED SENSOR - GRAY 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B2 20YL |
RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B1 20YL/DB |
RIGHT REAR WHEEL SPEED SENSOR SIGNAL |
