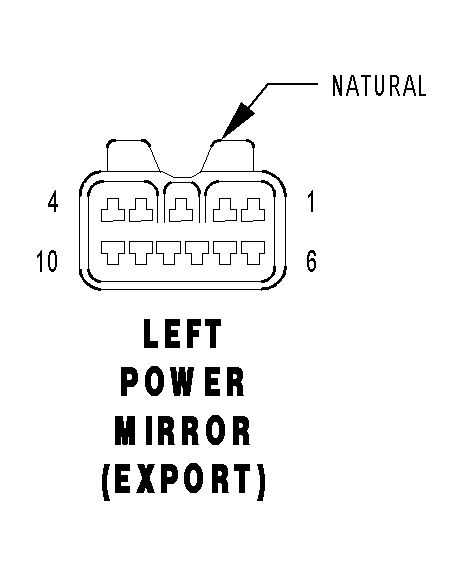

Left Power Mirror (Export) Connector End View
LEFT POWER MIRROR (EXPORT) - NATURAL 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z1 20BK | GROUND |
| 2 | P73 20YL/PK (LHD) | LEFT MIRROR RIGHT/DOWN MOVEMENT |
| 2 | P76 20OR/YL (RHD) | LEFT/RIGHT MIRROR RIGHT/DOWN MOVEMENT |
| 3 | C16 20LB/YL | FUSED REAR WINDOW DEFOGGER SWITCH OUTPUT |
| 4 | P71 20BR/YL | LEFT MIRROR UP MOVEMENT |
| 5 | P75 20DB/WT | LEFT MIRROR LEFT MOVEMENT |
| 6 | P159 20DG/WT (POWER FOLDING MIRRORS) | MIRROR UNFOLD |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | P160 20LB/BK (POWER FOLDING MIRRORS) | MIRROR FOLD |
