Intake Air Temperature Sensor (Diesel) Connector End View
Intake Air Temperature Sensor (Diesel) Connector End View

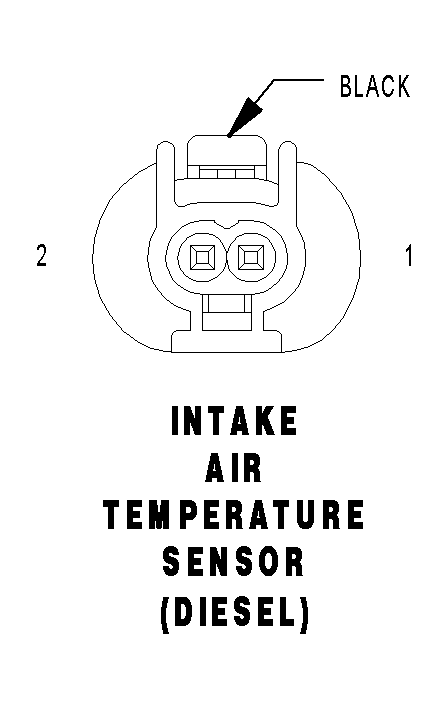

INTAKE AIR TEMPERATURE SENSOR (DIESEL) - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K121 20BR/WT
SENSOR GROUND
2
K48 20LG/WT
INTAKE AIR TEMPERATURE SENSOR SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
