Cargo Lamp Connector End View

CARGO LAMP - BLACK 3 WAY

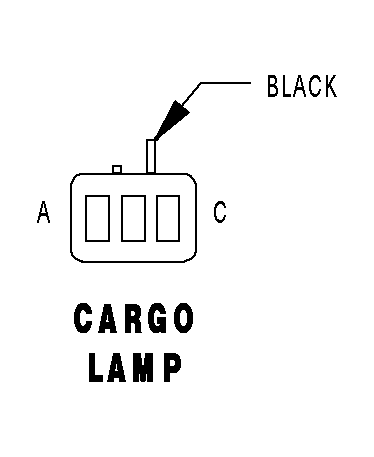

GCPT580133Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B M2 20YL COURTESY LAMPS DRIVER
C - -
