Blower Motor Connector End View

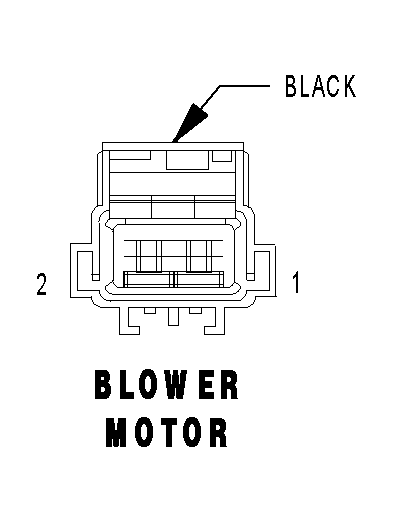

BLOWER MOTOR - BLACK 2 WAY

GCPT580020Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C1 14DG FUSED IGNITION SWITCH OUTPUT (RUN)
2 C7 14BK/TN BLOWER MOTOR HIGH DRIVER
