A/C Low Pressure Switch Connector End View

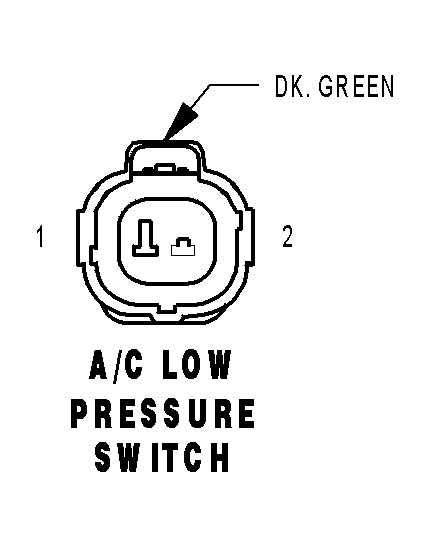

A/C LOW PRESSURE SWITCH - DK. GREEN 2 WAY

GCPT580004Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C21 20DB/OR A/C LOW PRESSURE SIGNAL
2 C20 20BR A/C REQUEST SIGNAL
