Ambient Temp Sensor: Removal

  1. Open hood.
  2. Working through the hole in the top center of the grille, remove the one retaining nut from the appropriate ambient temperature sensor. See Fig 1.

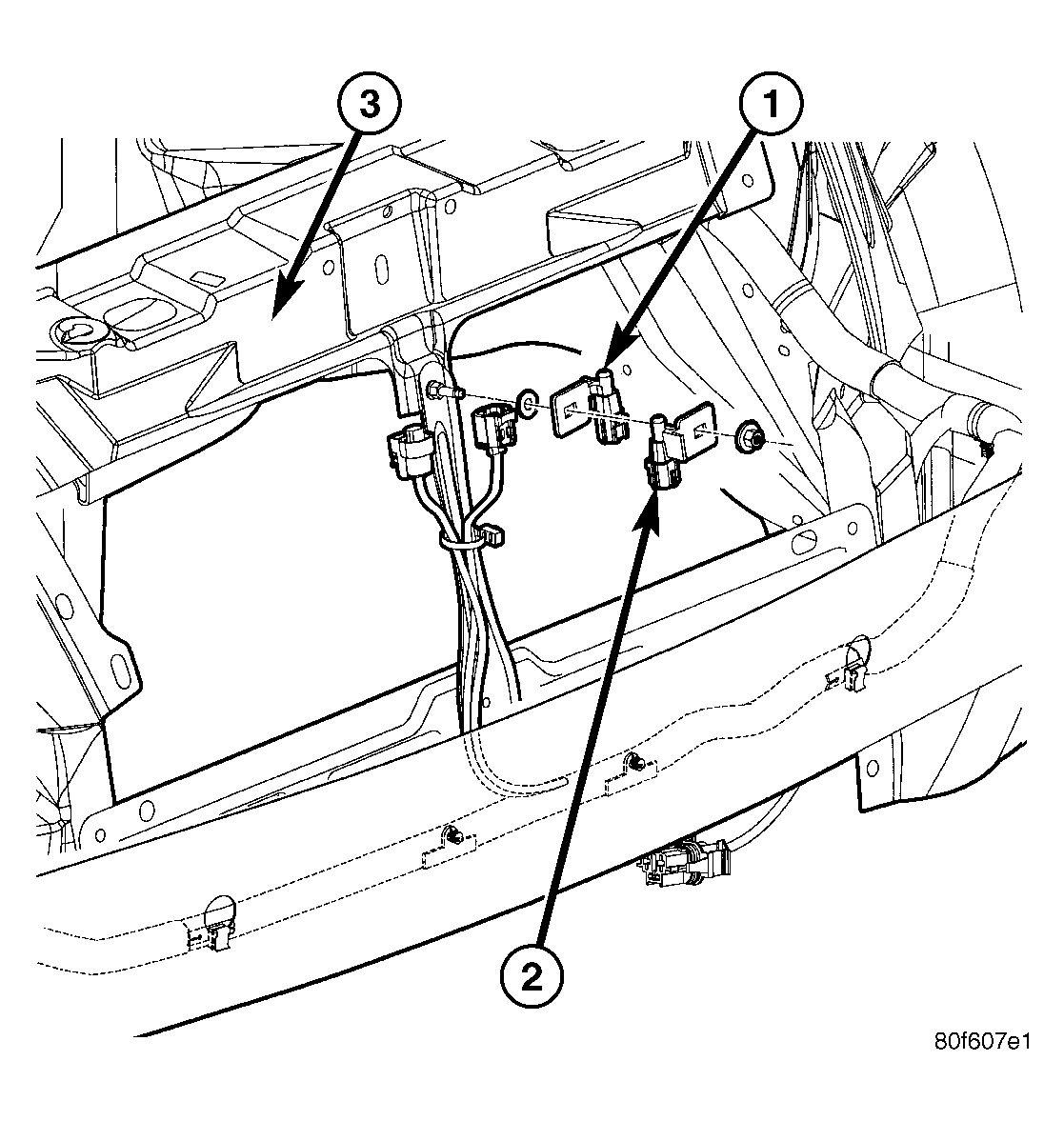

    Fig 1: Ambient Air Temperature Sensor Location
    GC0022955Courtesy of DAIMLERCHRYSLER CORP.
    1 - Air Temperature Sensor - NGC Engine Controller
    2 - Air Temperature Sensor - Overhead Console
    3 - Radiator Closure Panel
  3. Disconnect the ambient air temperature sensor electrical connector and remove the sensor from the vehicle.
