Sensor Testing

  1. Turn the ignition switch to the OFF position. Disconnect and isolate the battery negative cable. See Fig 1. Disconnect the ambient temperature sensor wire harness connector.

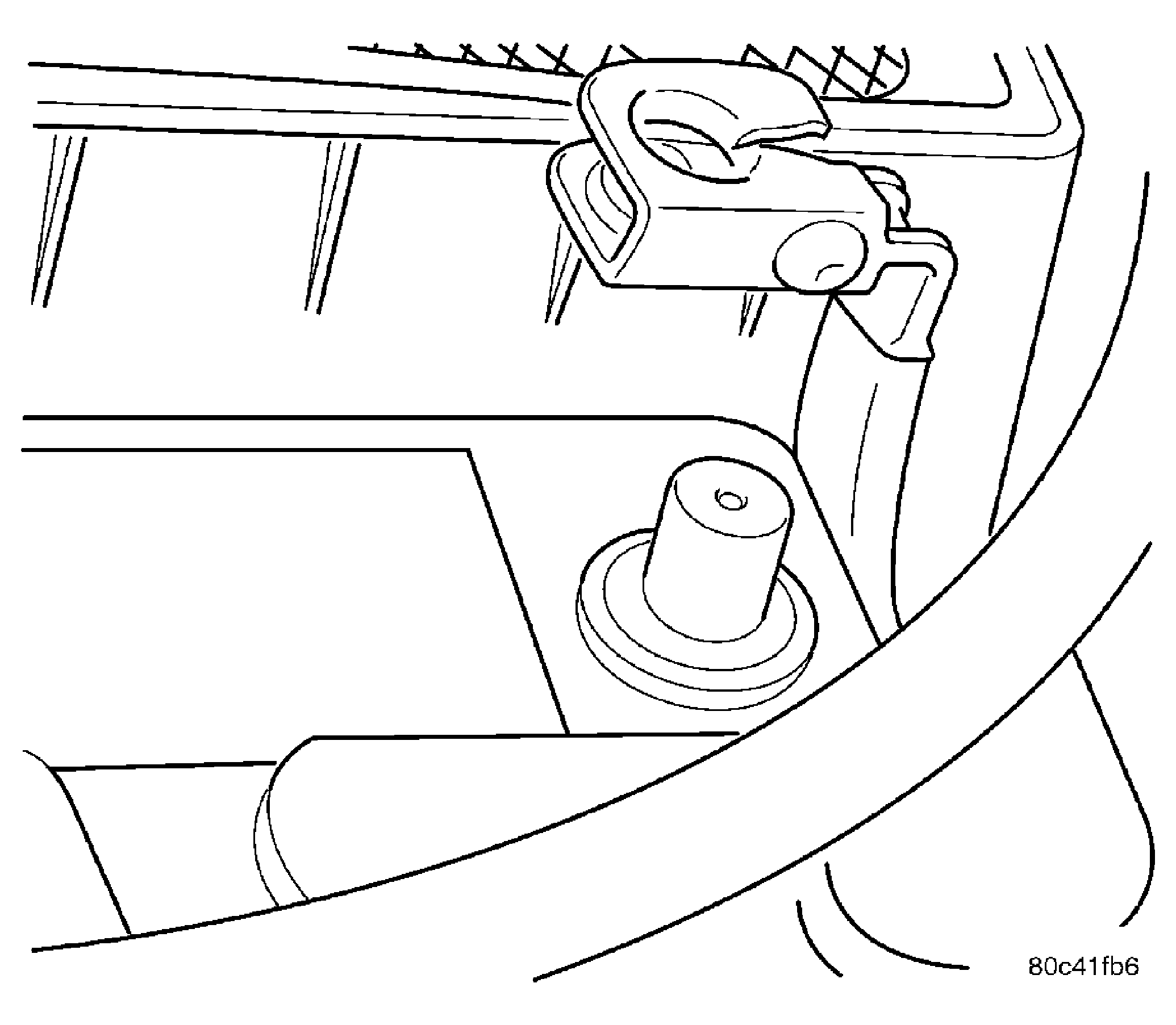

    Fig 1: Battery Negative Cable Remove/Install
    GC0022954Courtesy of DAIMLERCHRYSLER CORP.
  2. Measure the resistance of the ambient temperature sensor. At room temperature (approx. 68°F), the sensor resistance should be between 9-11 Kilohms (9000-11000 ohms). The sensor resistance should read between these two values. If OK, refer to SENSOR CIRCUIT TESTING . If not OK, replace the faulty ambient temperature sensor.
