Rear Wheel Speed Sensor: Removal

NOTE: Before proceeding, (Refer to BRAKES - WARNING) and (Refer to BRAKES - CAUTION) .

Raise the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
Remove the tire and wheel assembly from the vehicle.

Disconnect the wheel speed sensor cable connector from the vehicle wiring harness. See Fig 1. Remove the clip attaching wheel speed sensor cable connector to the vehicle's body.

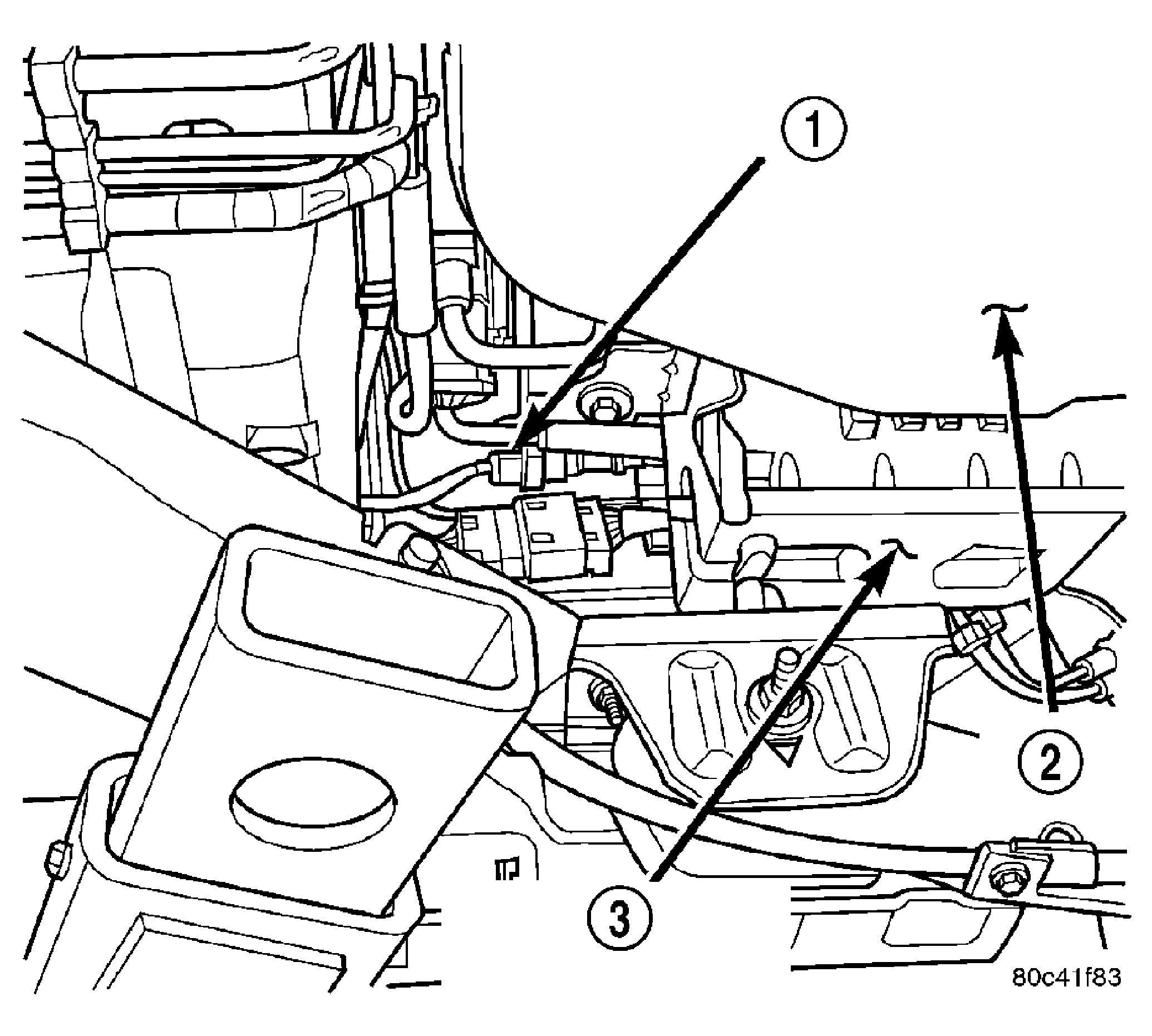

Fig 1: Wheel Speed Sensor Connector

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT REAR WHEEL SPEED SENSOR CONNECTOR

2 - FUEL TANK

3 - EVAPORATIVE CANISTER

Disconnect the wheel speed sensor cable routing clips running along the brake tube, brake hose and axle trailing arm.
CAUTION: When removing a wheel speed sensor from the rear disc brake adapter, do not use pliers on the sensor head. This may damage the sensor head. If the sensor has seized, use a hammer and a punch to tap the edge of the sensor head ear, rocking the sensor side-to-side until free.
Remove the bolt attaching the wheel speed sensor to the rear disc brake adapter or drum brake support plate, then carefully remove the sensor head from the rear disc brake adapter and vehicle. See Fig 2.

Fig 2: Right Rear Wheel Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHOCK ABSORBER

2 - RIGHT REAR WHEEL SPEED SENSOR
