Remote Keyless Entry Module Wiring Diagram

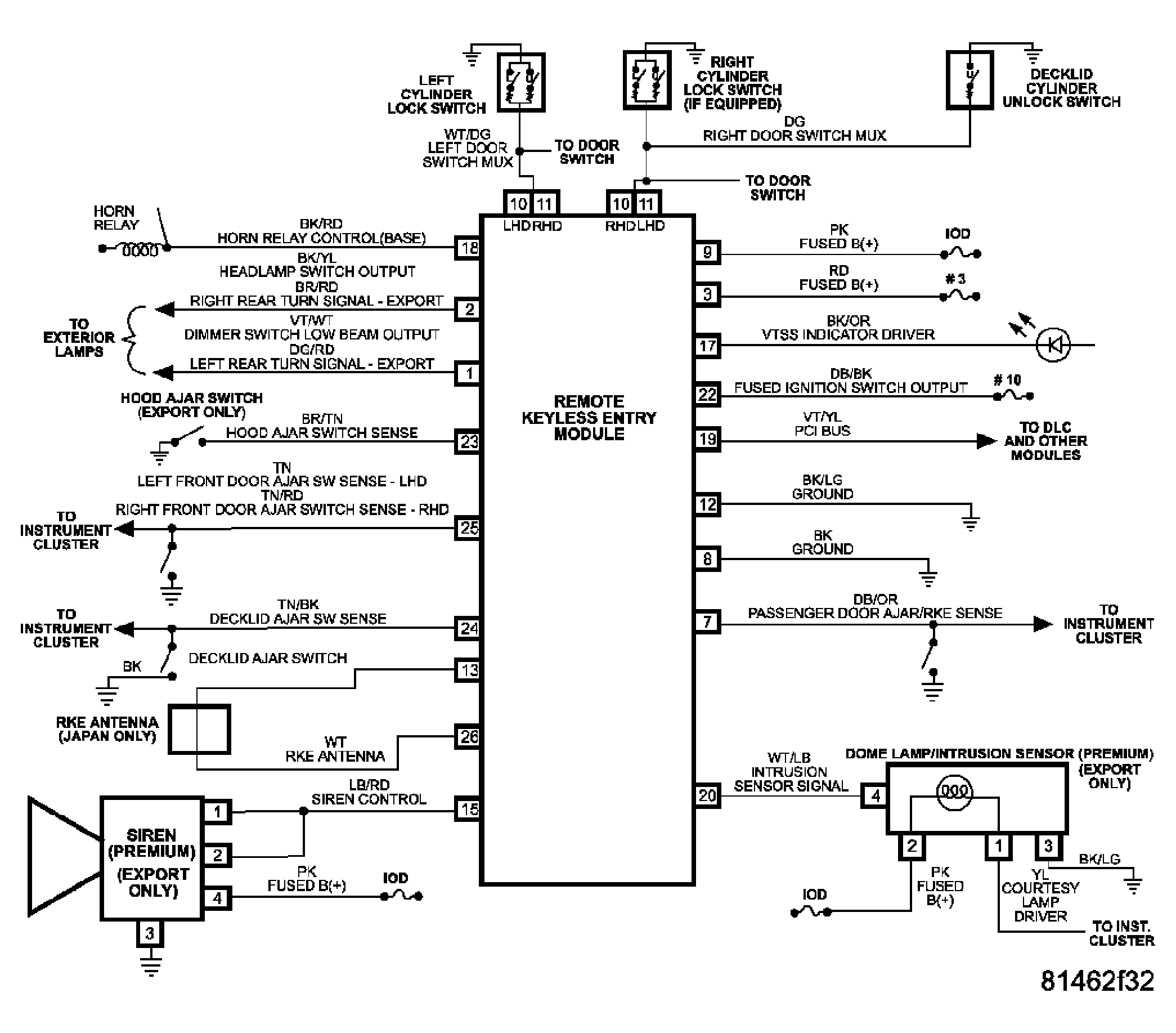

Fig 1: Vehicle Theft Security System - Schematic Diagrams

G04549131

Courtesy of DAIMLERCHRYSLER CORP.
