Interior Lighting

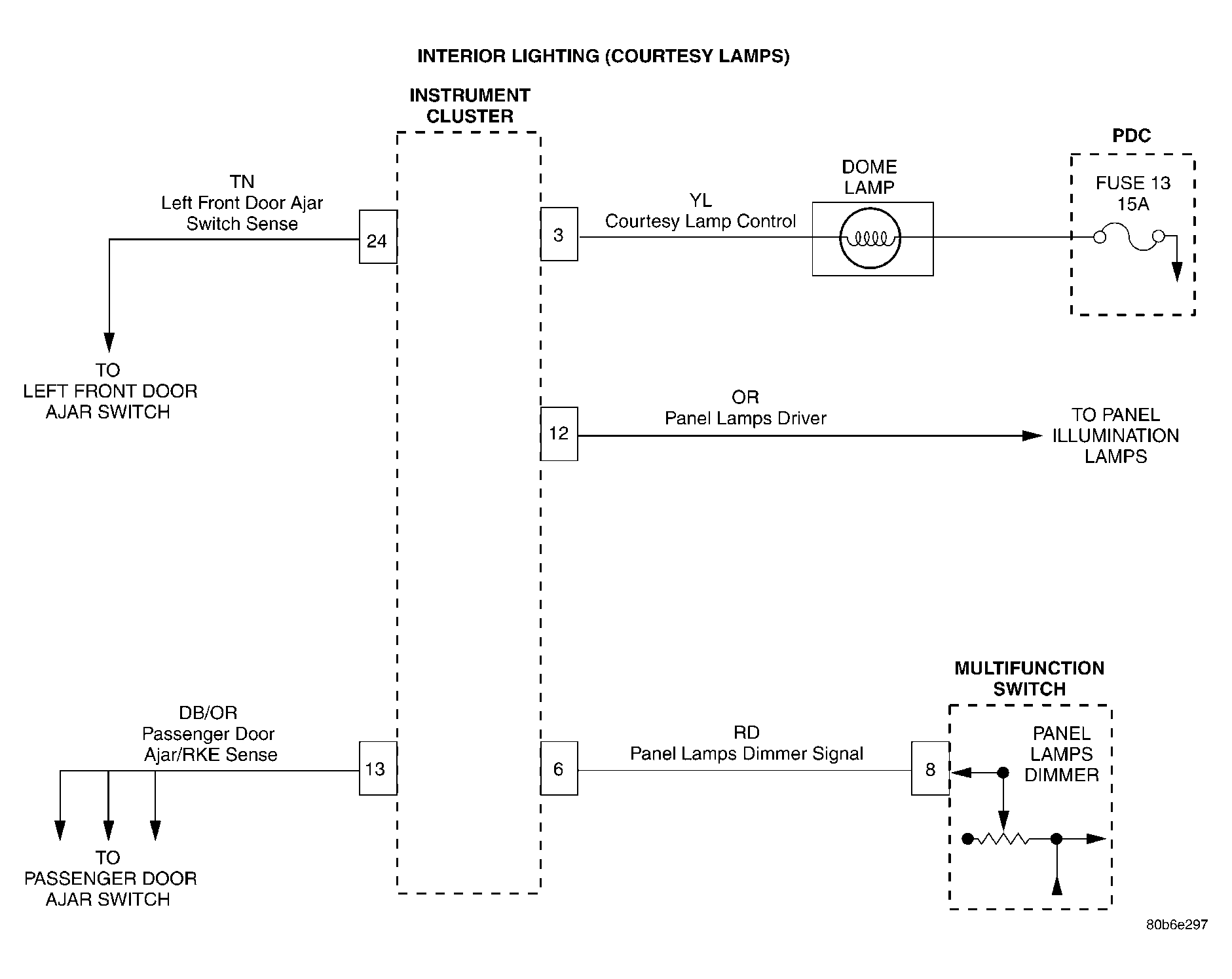

Fig 1: Interior Lighting - Schematic Diagrams

G04549125

Courtesy of DAIMLERCHRYSLER CORP.
