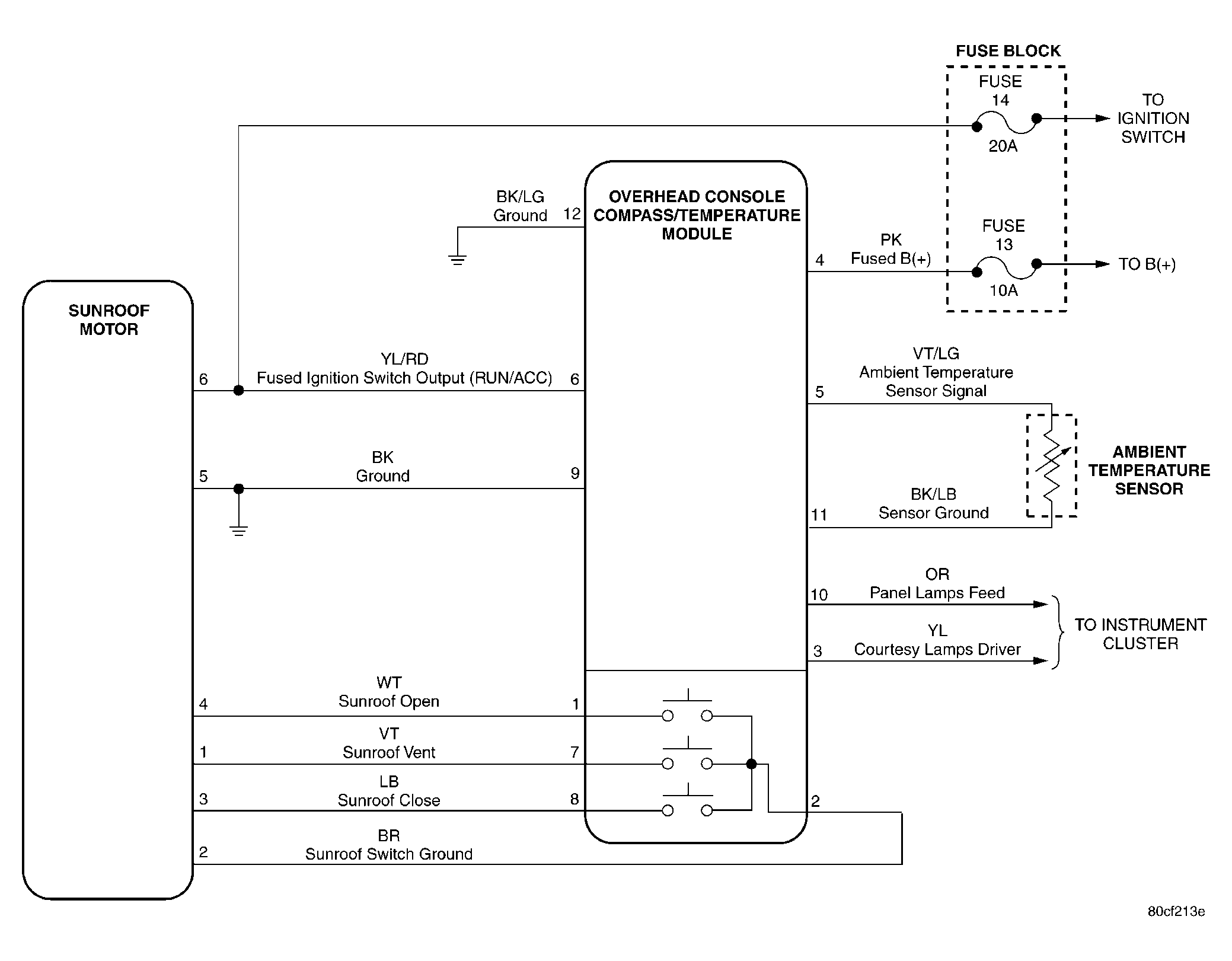

Home >> Chrysler >> 2005 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Diagnostic Procedures >> Schematic Diagrams >> Compass/Temperature Module >> Notes
