Remote Keyless Entry Module - Black 26 Way

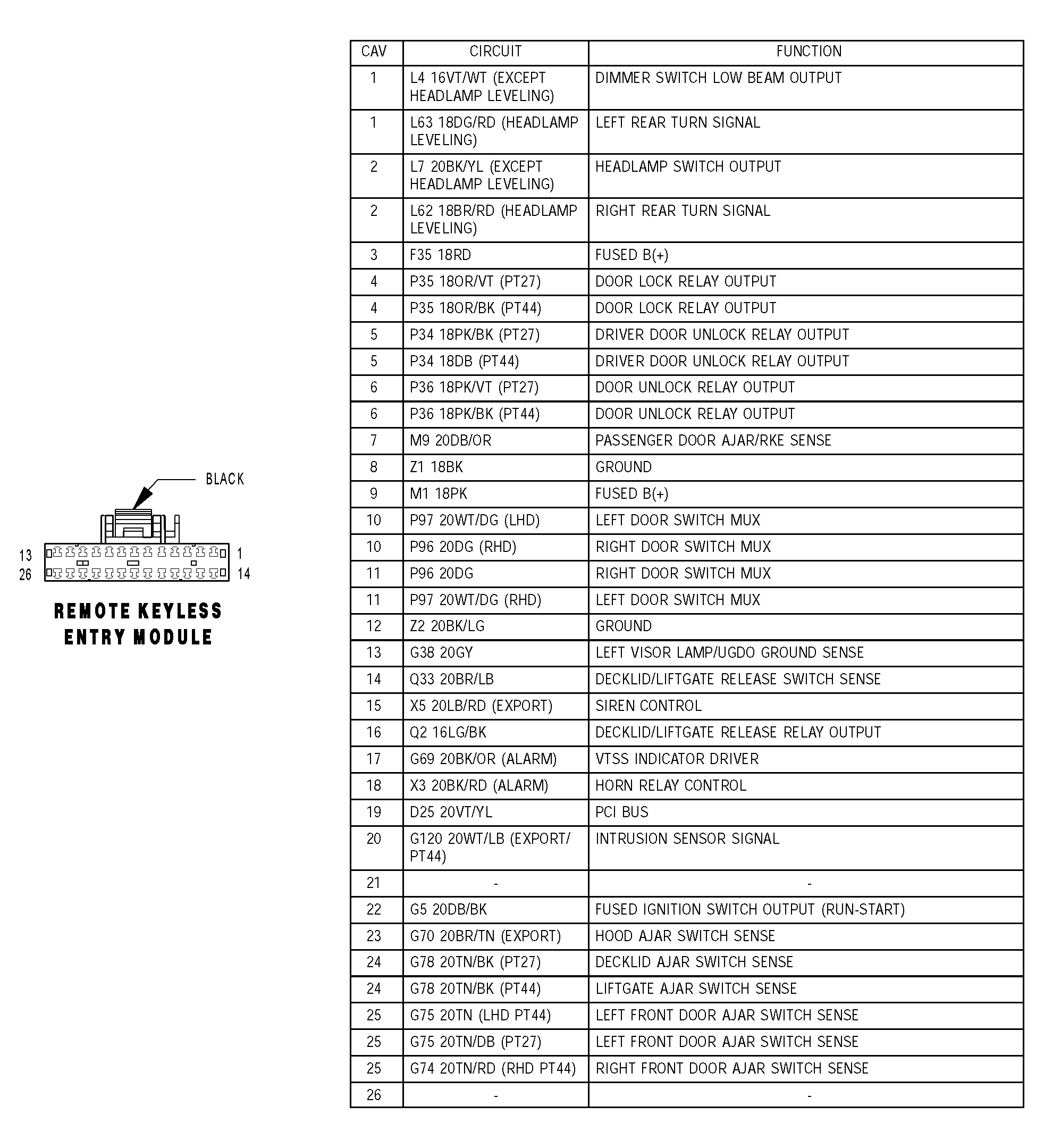

Fig 1: Identifying Remote Keyless Entry Module - Connector Pinouts

G04549105

Courtesy of DAIMLERCHRYSLER CORP.
