Overhead Console Module - Black 12 Way

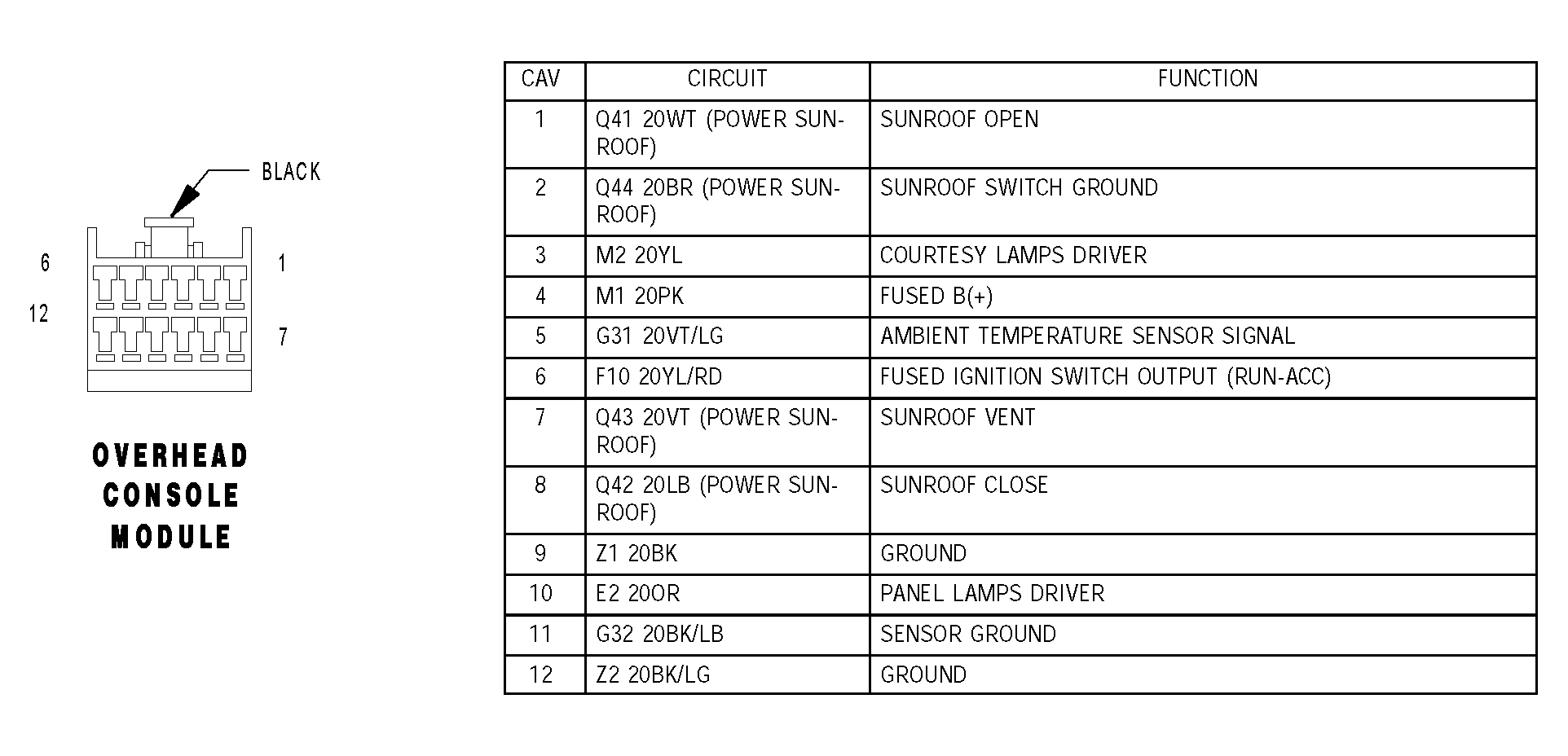

Fig 1: Identifying Overhead Console Module - Connector Pinouts
G04549087Courtesy of DAIMLERCHRYSLER CORP.
