Door Cylinder Lock Switch: Installation

  1. Splice in the new switch. Refer to SYSTEM WIRING DIAGRAMS for splicing information.
  2. Route the door cylinder lock switch inside the door panel.

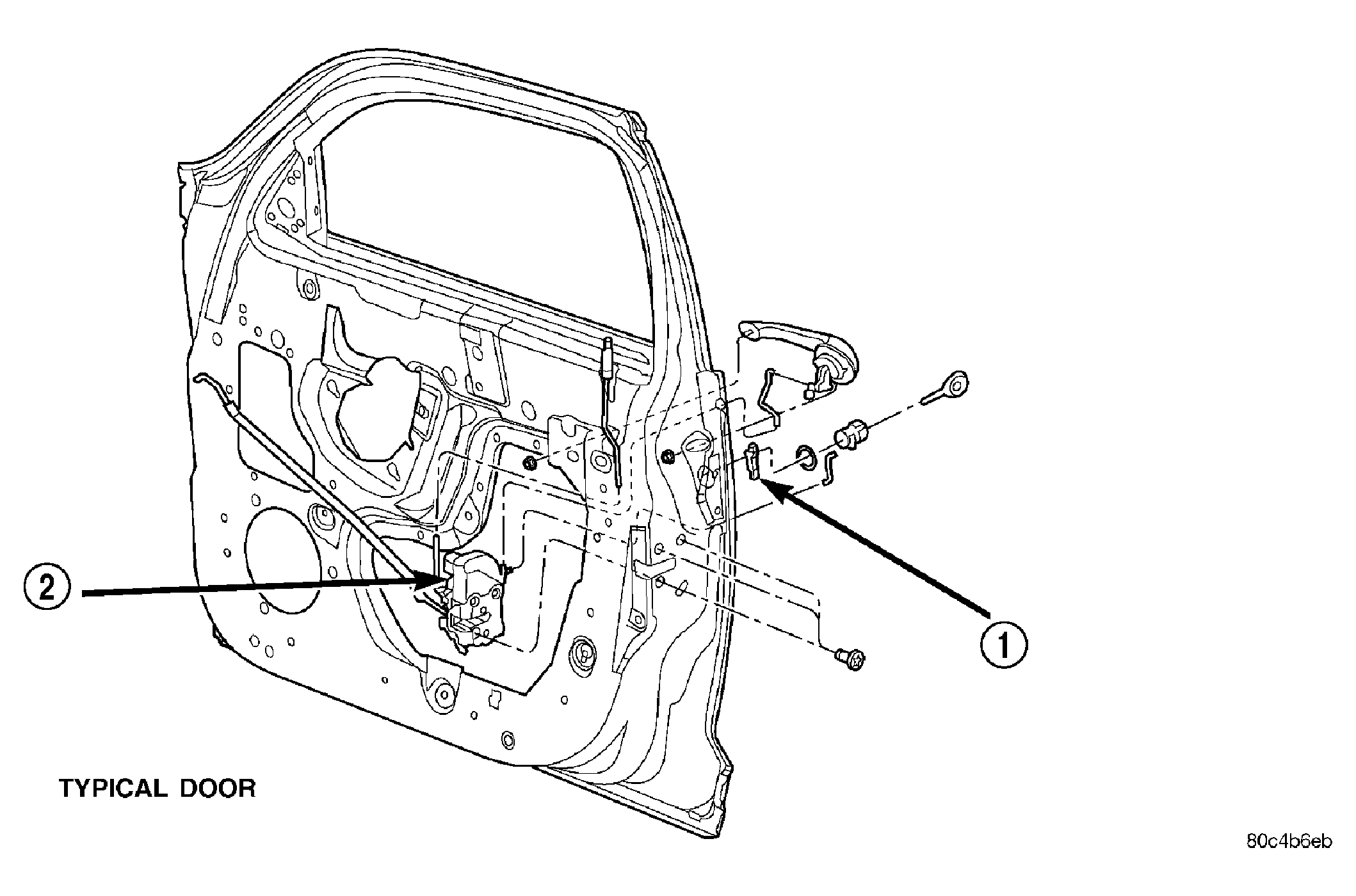

  3. Install door cylinder lock switch on rear of door lock cylinder. See Figure.
  4. Install the front door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
  5. Connect the battery negative cable. See Figure.
  6. Close hood.
  7. Verify vehicle and system operation.
