Diagnosis And Testing - Remote Keyless Entry Transmitter

Using special tool 9001, first test to ensure that the transmitter is functioning. Typical testing distance is 2.5 centimeters (1 inch) for Asian transmitters and 30.5 centimeters (12 inches) for all others. To test, position the transmitter as shown. See Fig 1. Press any transmitter button, then test each button individually. The tool will beep if a radio signal strength that lights five or more LED's is detected. Repeat this test three times. If transmitter fails any of the tests, refer to BODY DIAGNOSTIC PROCEDURES .

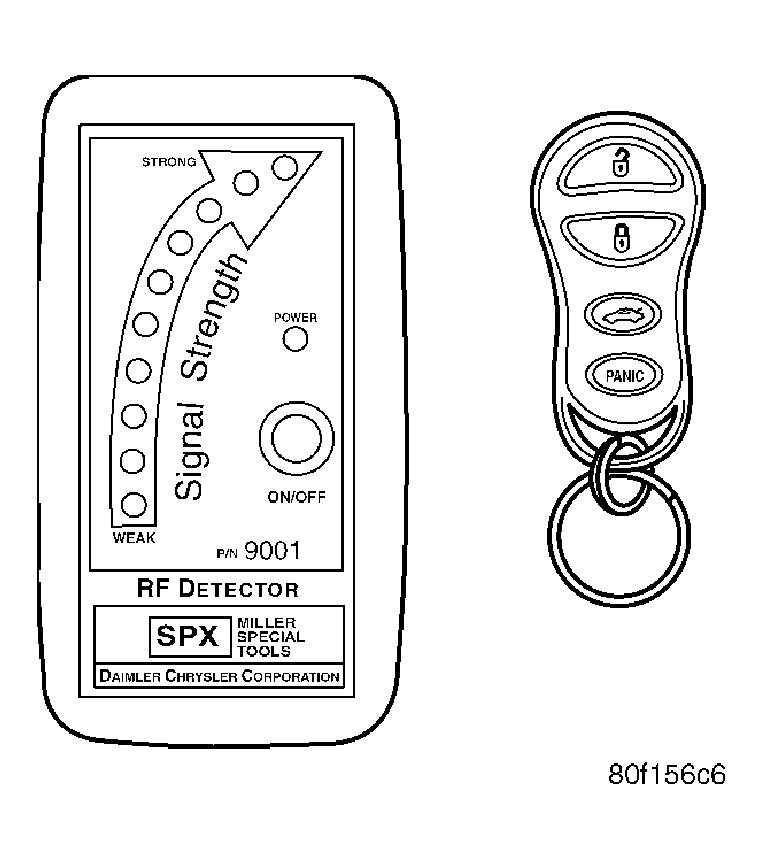

Fig 1: RKE Transmitter Diagnosis

Courtesy of DAIMLERCHRYSLER CORP.
