Data Link Connector: Description

The data link connector is located inside the vehicle, below instrument panel next to the center column. See Fig 1.

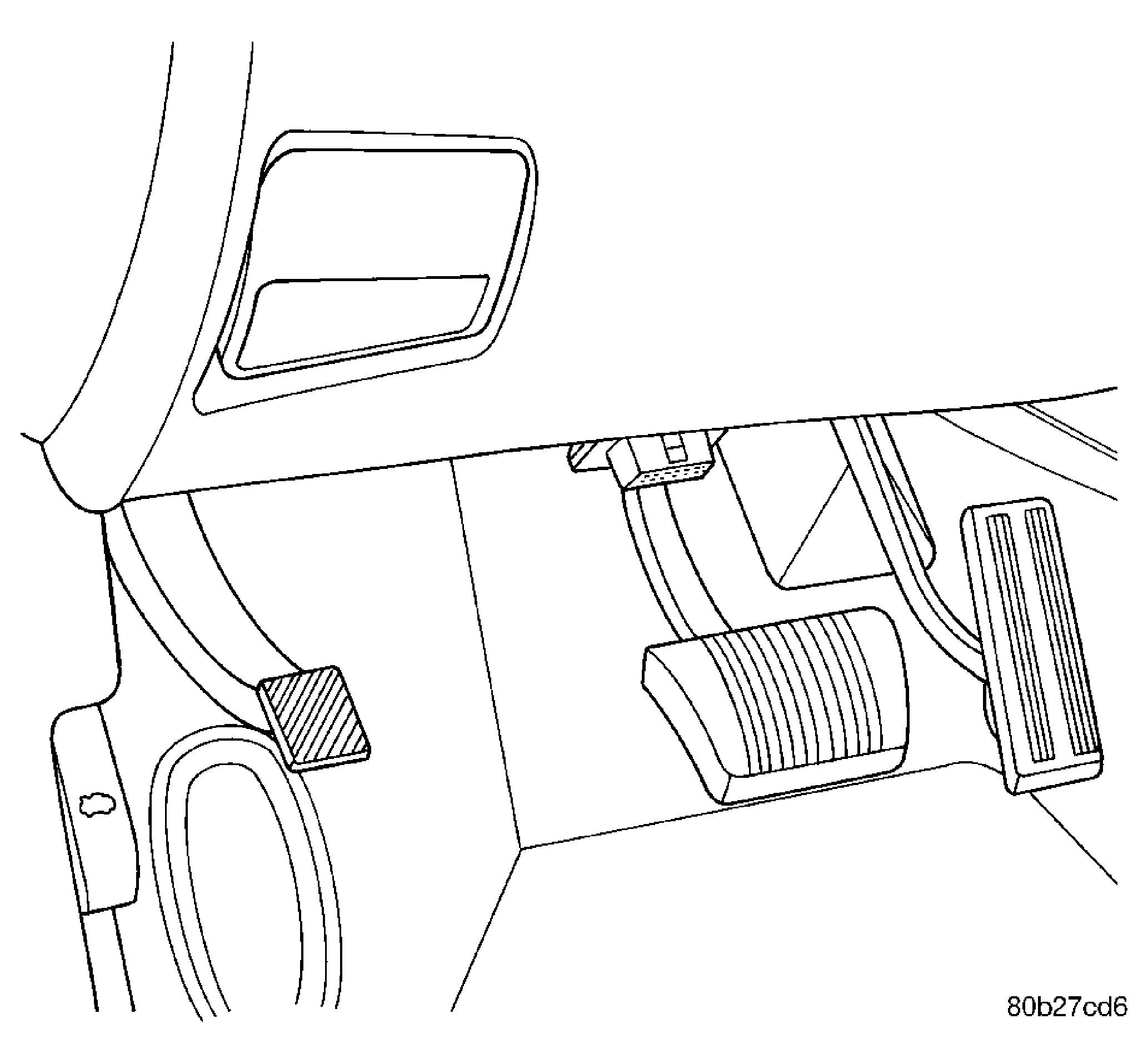

Fig 1: Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.
