Coil On Plug 2 Connector End View

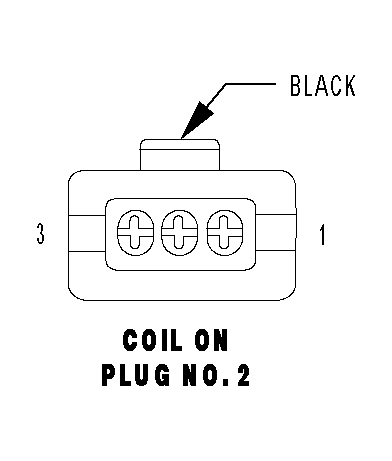

COIL ON PLUG NO. 2 - BLACK 3 WAY

GCZH580085Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 18YL COIL ON PLUG DRIVER NO. 2
2 18BK/DG FUSED IGNITION SWITCH OUTPUT
3 18YL/WT COIL ON PLUG DRIVER NO. 2
