Front Wheel Speed Sensor: Installation

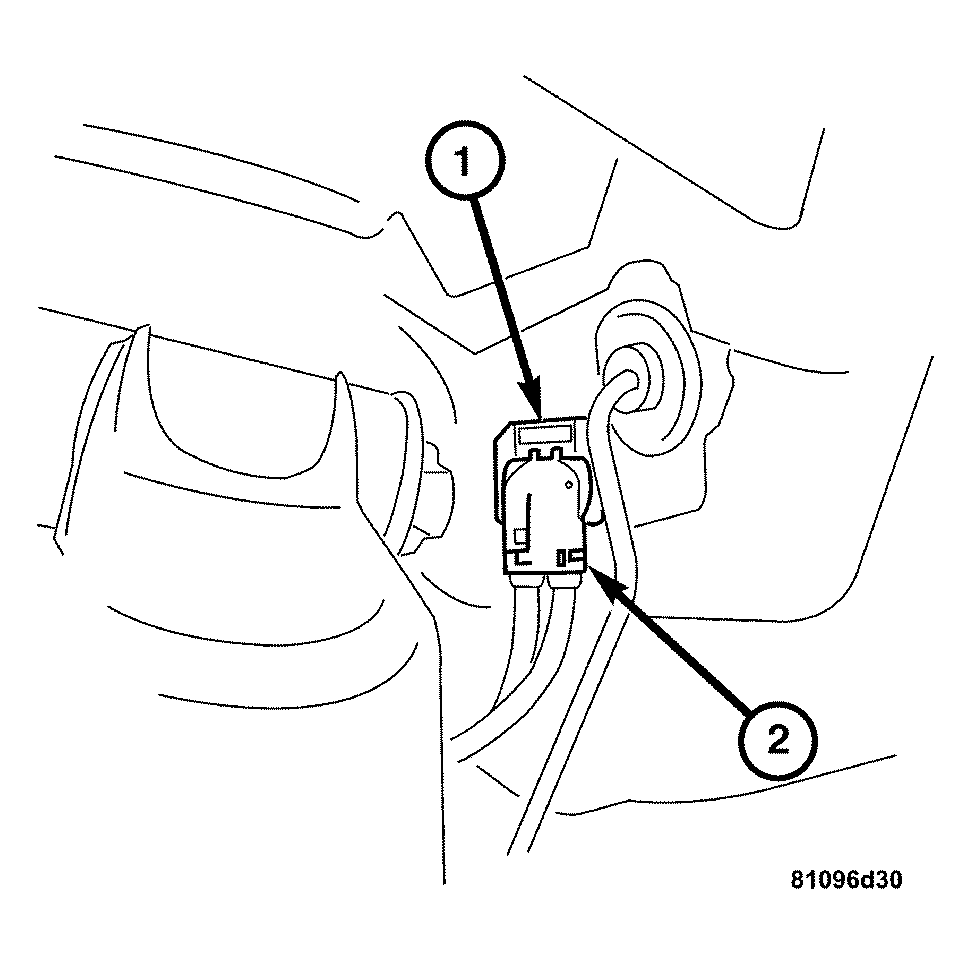

Fig 1: Disconnecting/Connecting Wheel Speed / Brake Wear Indicator Wire Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

1. Connect the wheel speed sensor / brake wear indicator wire harness connector (2) to the body mount connector (1).

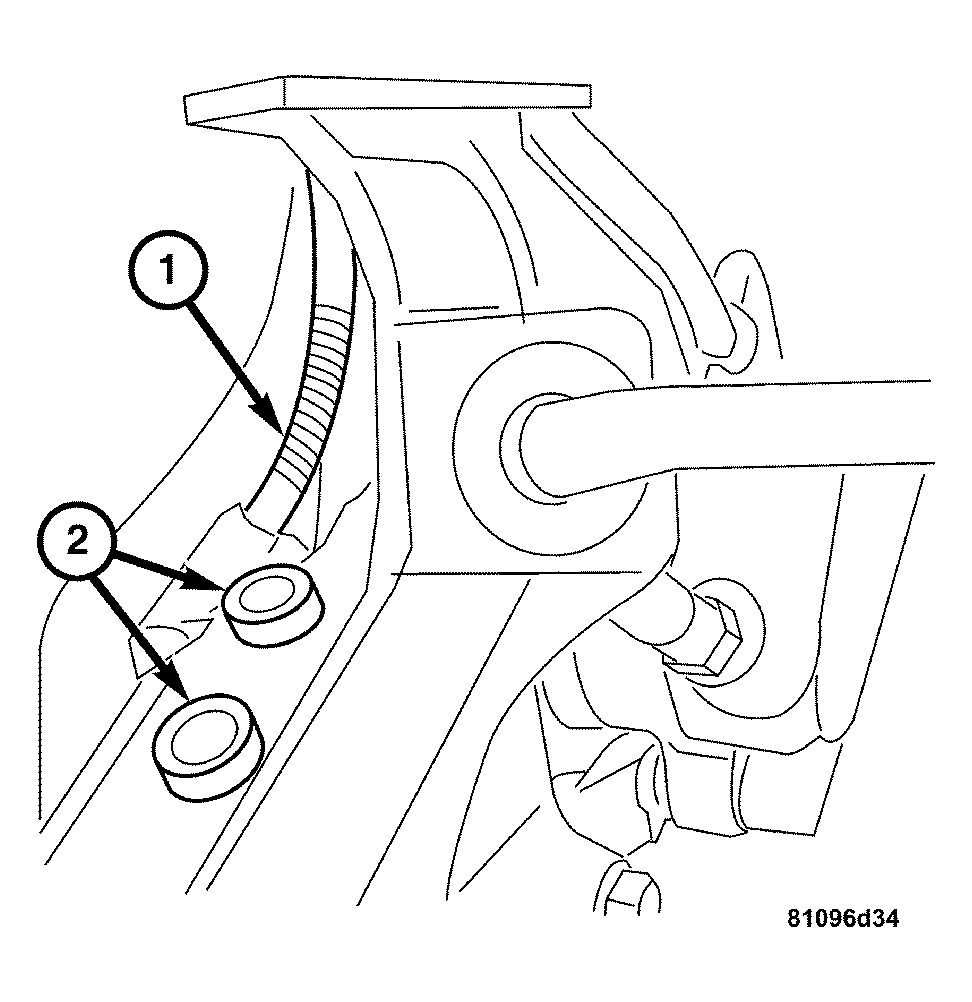

   Fig 2: Removing/Installing Wheel Speed Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the wheel speed sensor (1) to the steering knuckle.
3. Install the bolts (2) attaching the flange to the steering knuckle. Tighten to 12 N.m (106 in. lbs.).
