Vibration Damper: Installation

  1. Inspect for oil leaks at the front crankshaft oil seal.
  2. Replace the front crankshaft oil seal if signs of leakage are present.
  3. Inspect the sealing surface of the vibration damper. Smooth any roughness with emery paper or an oil stone.
  4. Measure the vibration damper bolt. Replace the bolt if length exceeds 78 mm.
  5. Position the vibration damper on the front of the crankshaft.
  6. Lubricate the bolt threads with engine oil before installing.
  7. Install the vibration damper bolt and tighten:
    • 1st to 200 N.m (148 ft. lbs.),
    • Then retighten the bolt an additional 90° clockwise.

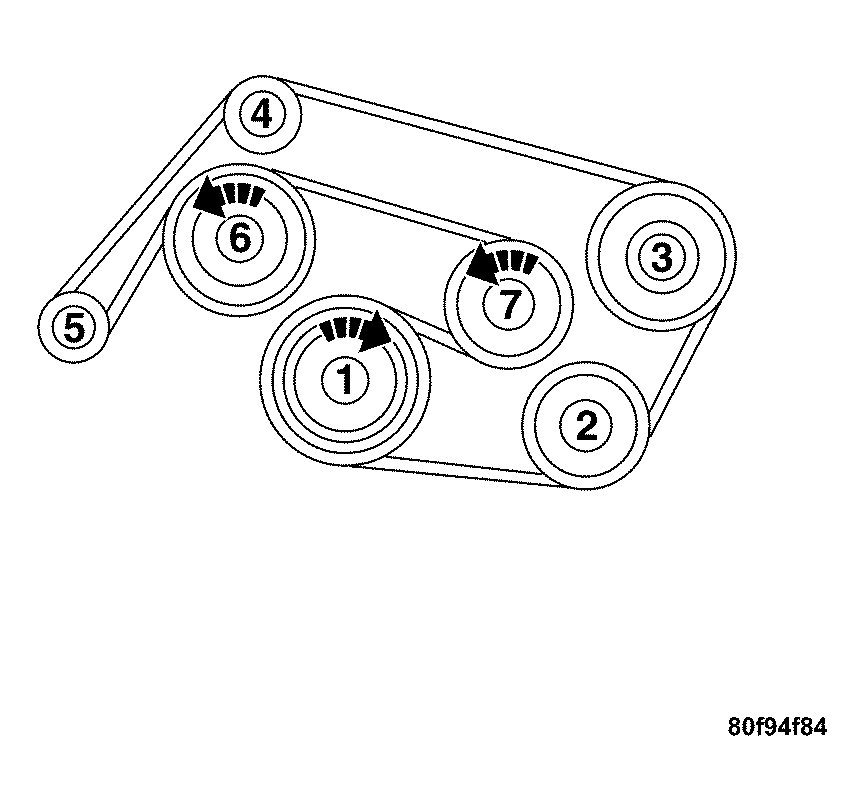

    Fig 1: Identifying Accessory Drive Belt
    GC0034014Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the accessory drive belt.
  9. Install the radiator with the radiator fan. (Refer to COOLING/ENGINE/RADIATOR - INSTALLATION) .
  10. Remove the Special Tool 9102 Flywheel Locking Tool.
  11. Install the starter. (Refer to ELECTRICAL/STARTING/STARTER MOTOR - INSTALLATION) .
  12. Connect the negative battery cable.
  13. Start the engine and check for leaks.
