Rear Mount: Installation

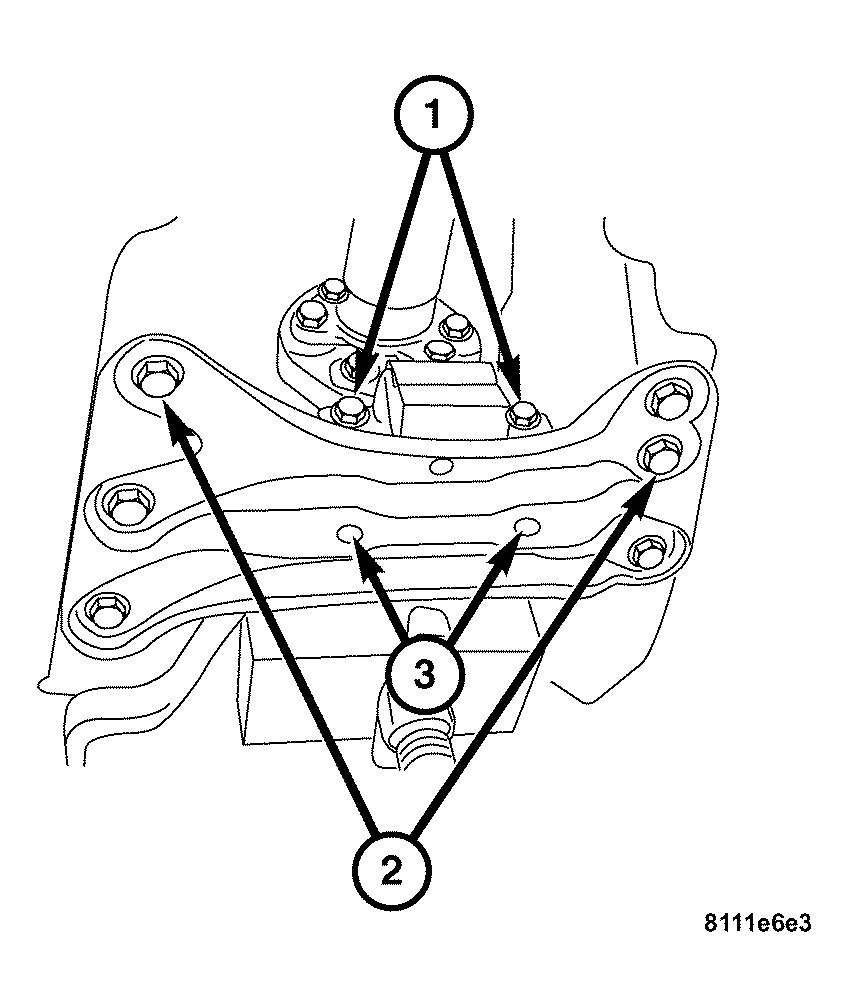

Fig 1: Removing/Installing Rear Mount
GC0034472Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the rear mount on the transmission.
  2. Install the rear mount upper bolts (1). Tighten the bolts to 40 N.m (30 ft. lbs.).
  3. Lower the transmission on to the rear crossmember.
  4. Install the rear mount lower bolts (3). Tighten the bolts to 40 N.m (30 ft. lbs.).
  5. Remove the transmission jack.
  6. Lower the vehicle.
