Crossfire Base, 2D Coupe
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
Schematics And Diagrams
Schematics And Diagrams

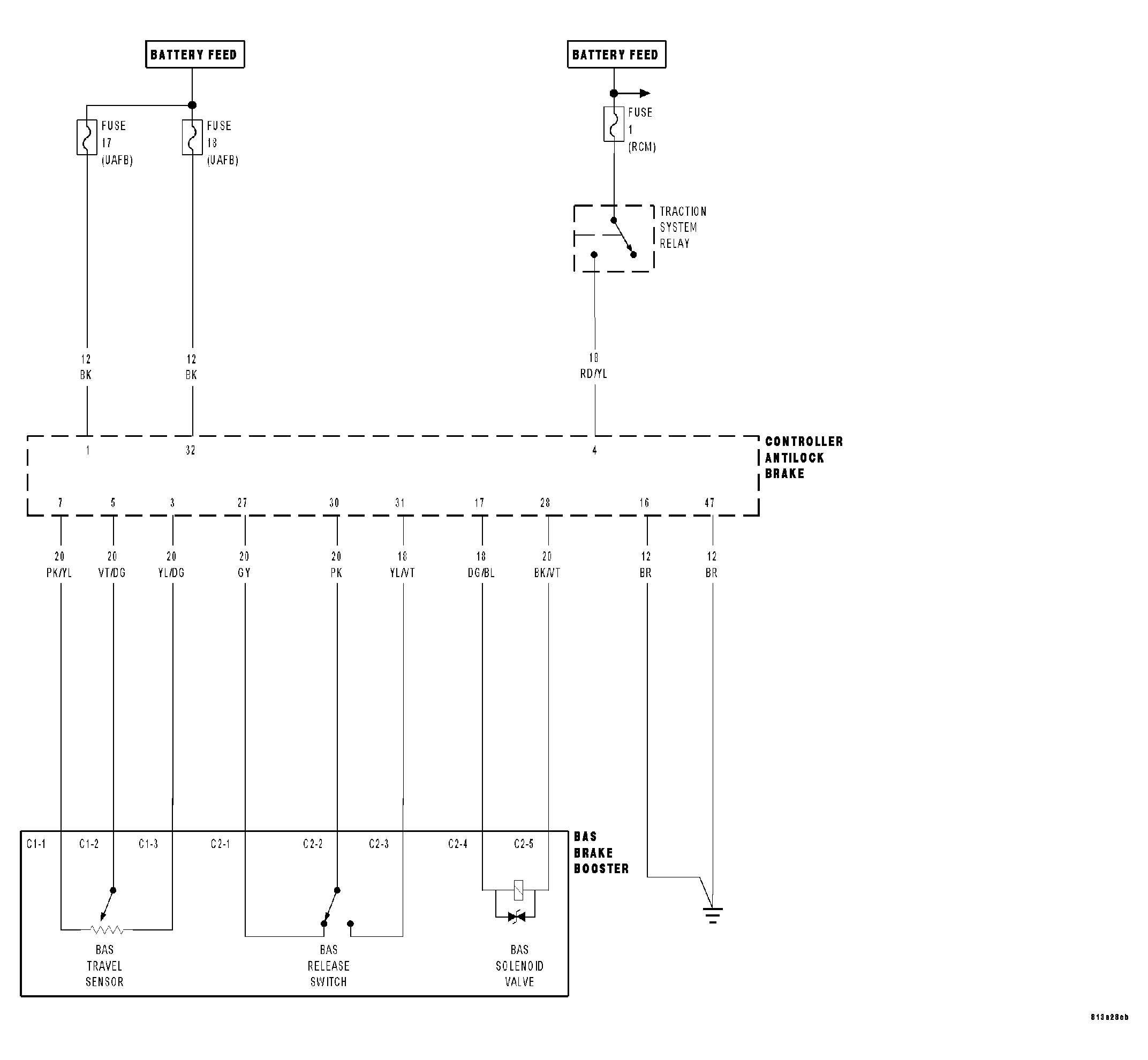

Fig 1: ANTILOCK BRAKE CIRCUIT DIAGRAM (1 OF 3)
Courtesy of DAIMLERCHRYSLER CORP.

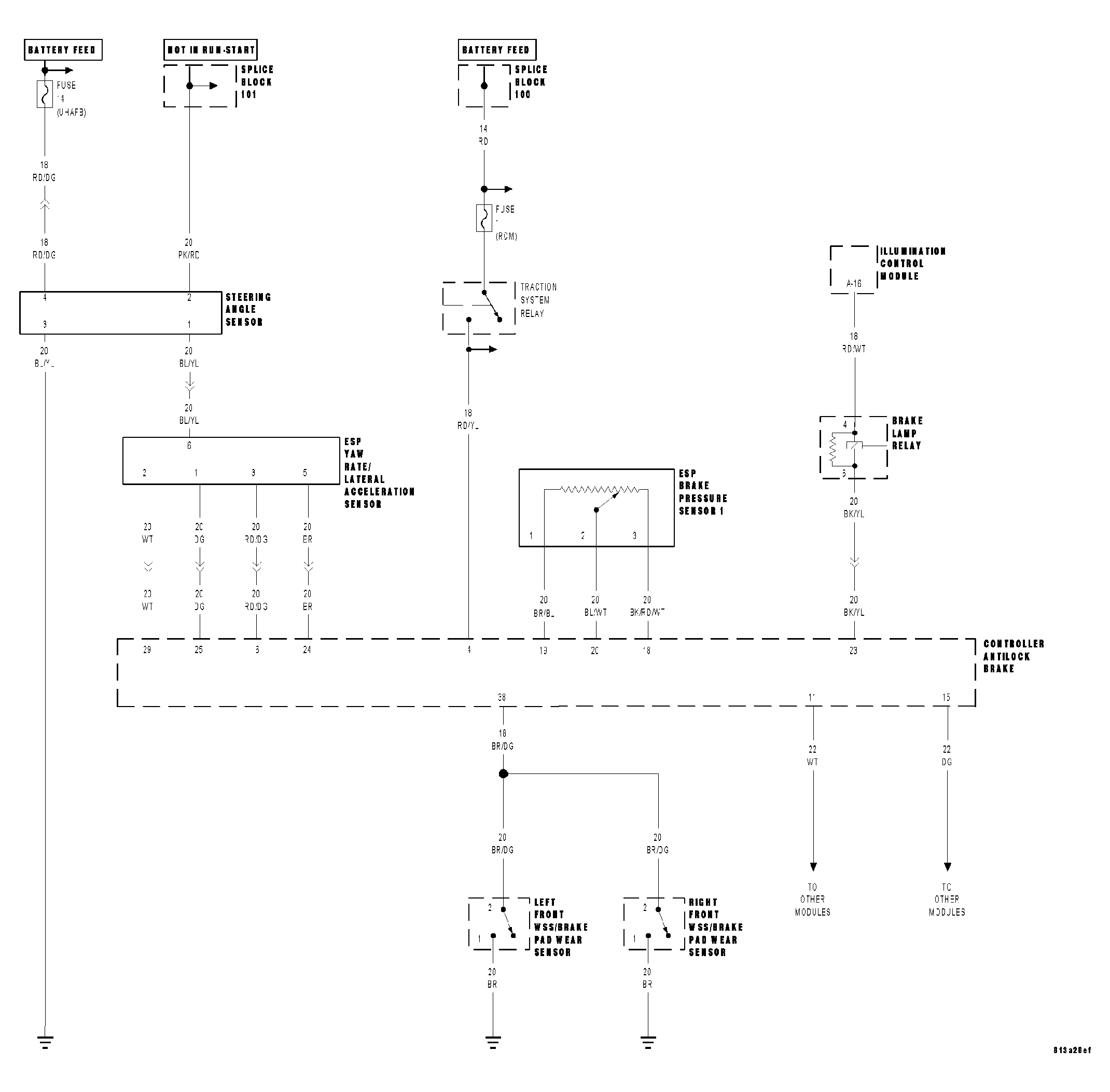

Fig 2: ANTILOCK BRAKE CIRCUIT DIAGRAM (2 OF 3)
Courtesy of DAIMLERCHRYSLER CORP.

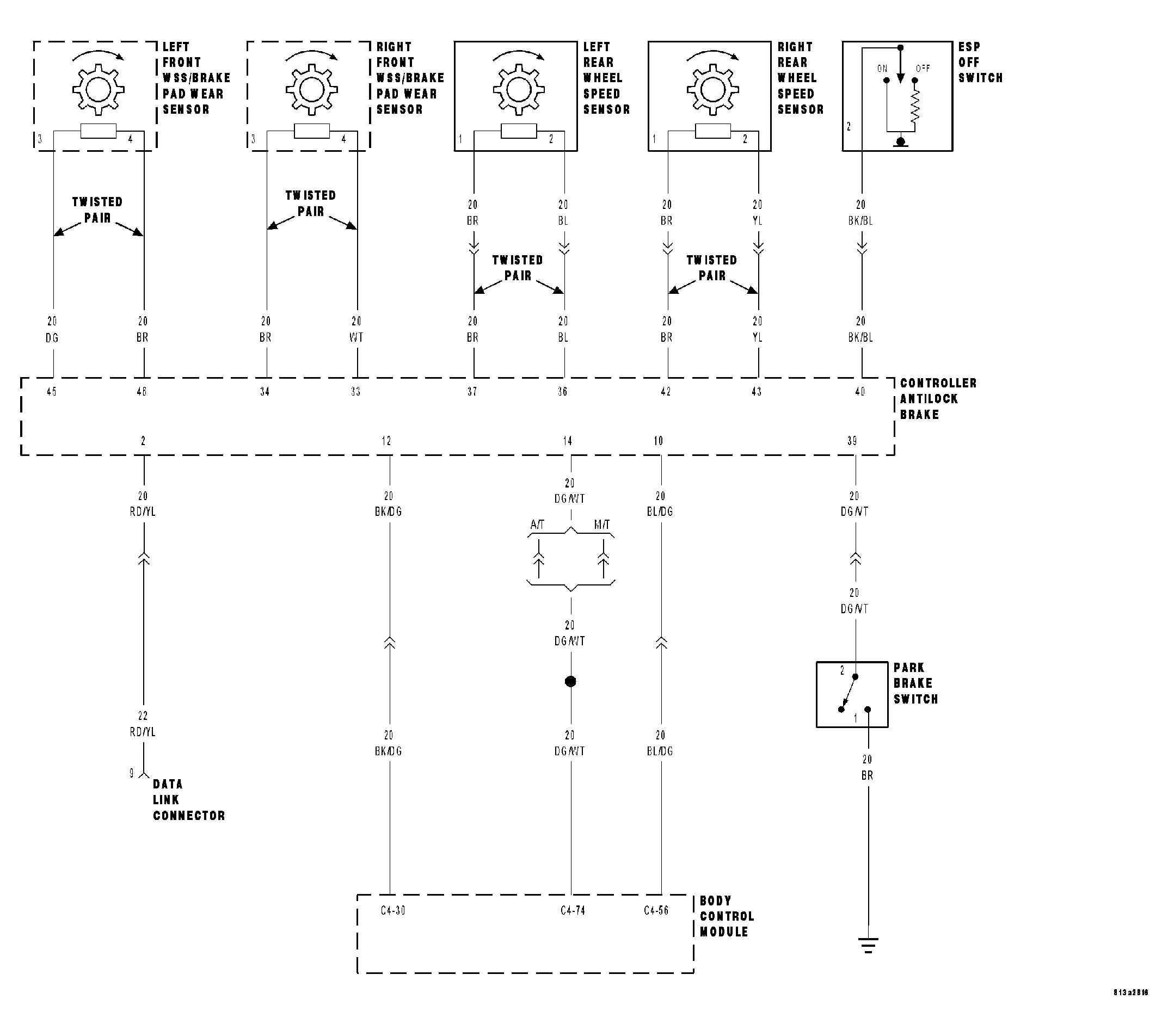

Fig 3: ANTILOCK BRAKE CIRCUIT DIAGRAM (3 OF 3)
Courtesy of DAIMLERCHRYSLER CORP.
