DTC 1140: Esp Brake Pressure Sensor 1 Circuit: Notes

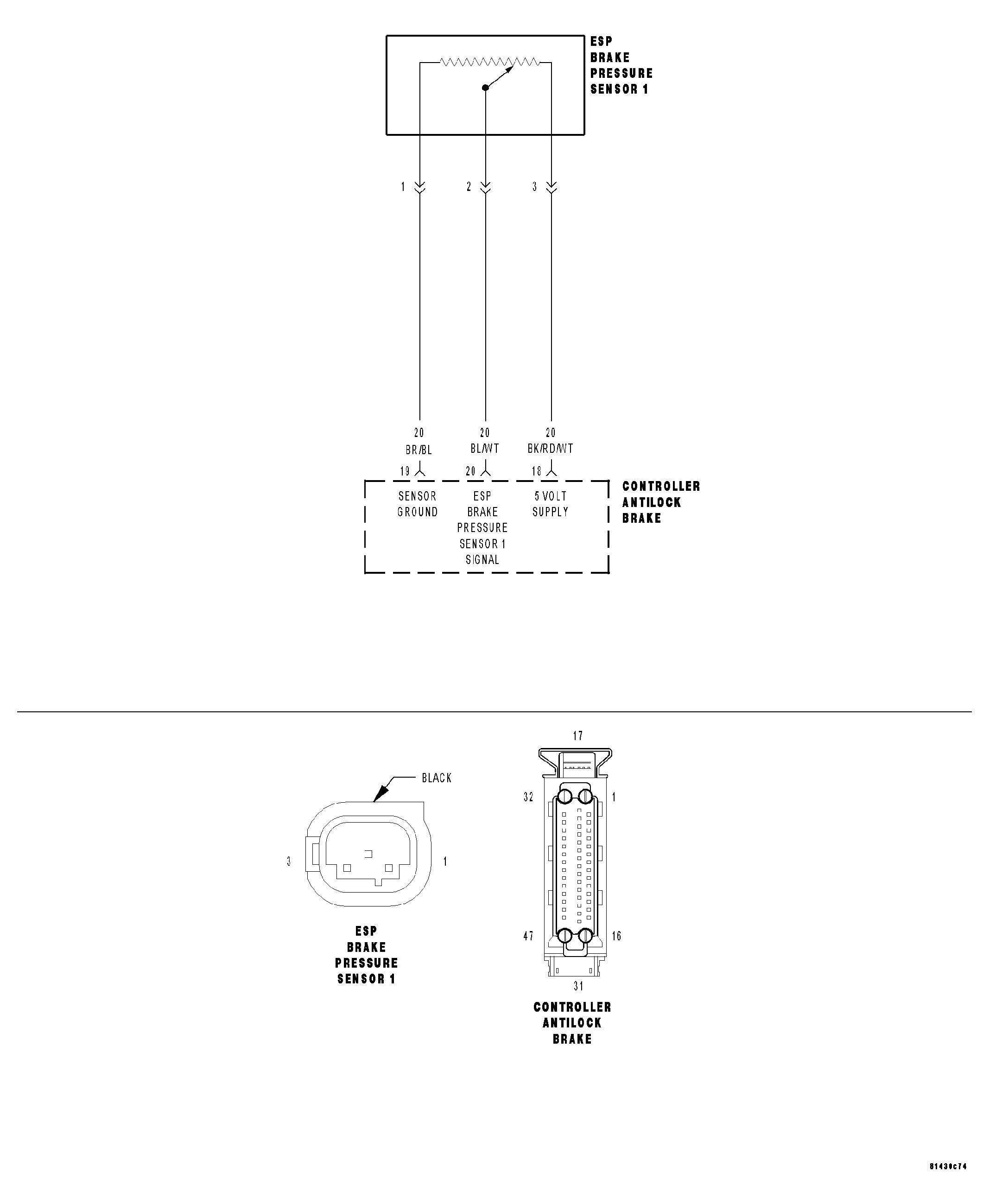

Fig 1: Brake Pressure Sensor 1 Circuit Schematic

GC0033854

Courtesy of DAIMLERCHRYSLER CORP.
