Clutch Cover: Description

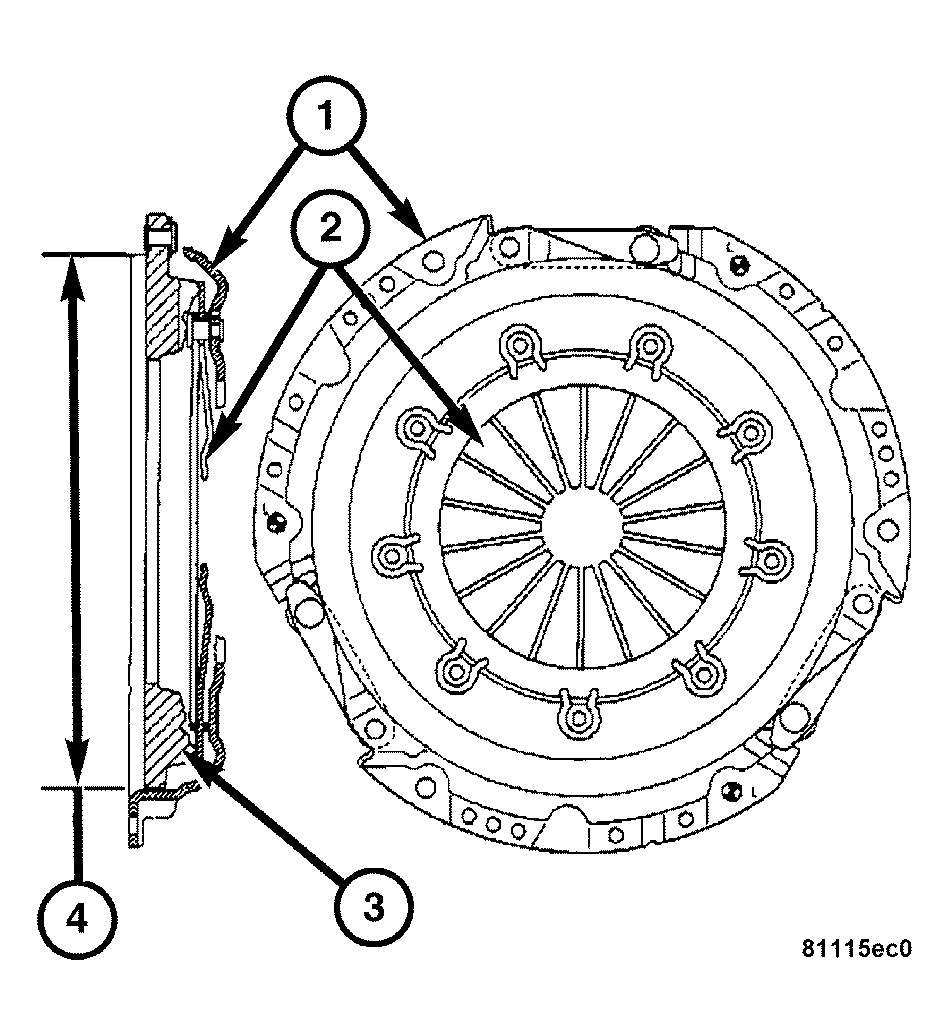

Fig 1: Locating Clutch Cover Assembly, Release Fingers & Flywheel

Courtesy of DAIMLERCHRYSLER CORP.

The clutch cover assembly (1), sometimes referred to as a pressure plate, is a diaphragm type with a one-piece spring and multiple release fingers (2). The clutch cover is attached to the engine flywheel (3) with eight bolts.
