Radiator Pressure Cap: Description

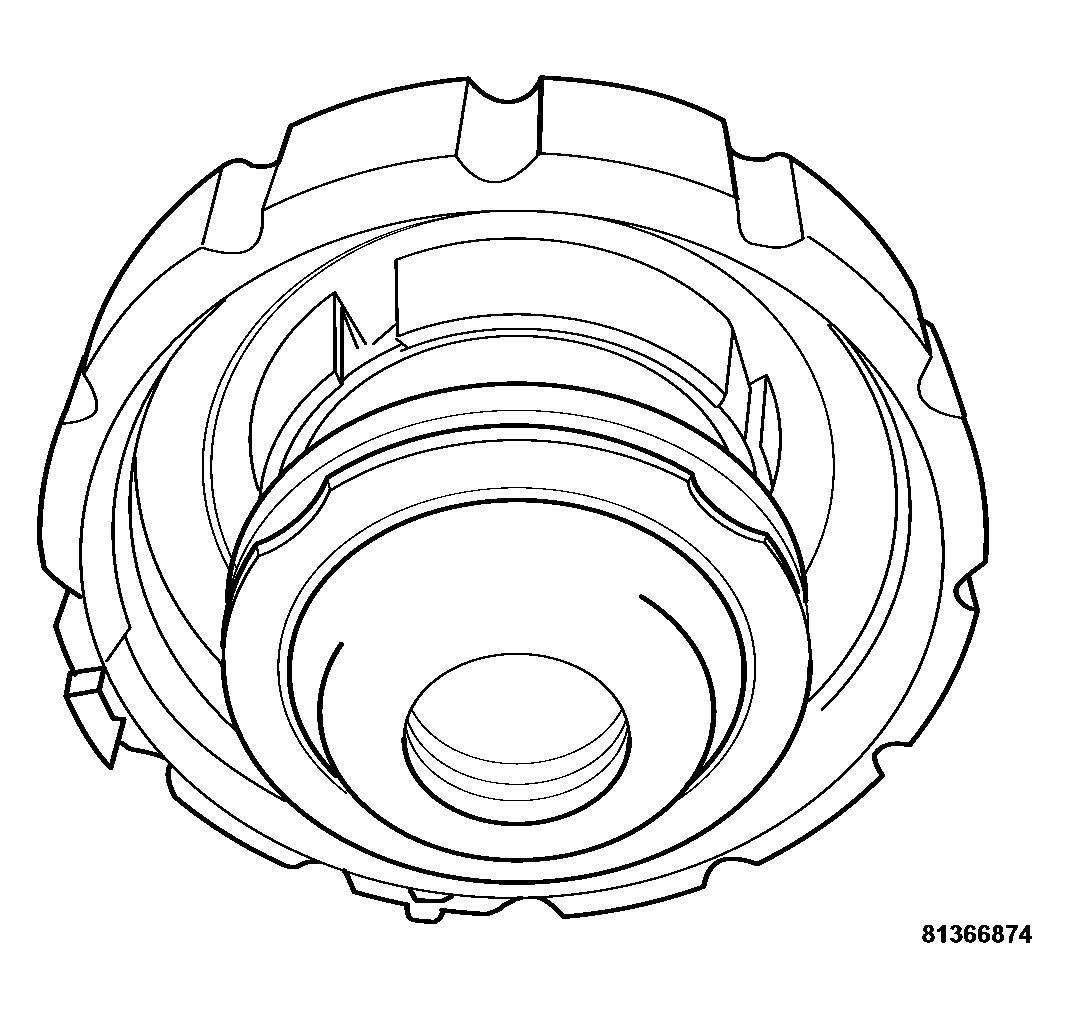

Fig 1: Identifying Radiator Pressure Cap
GC0033993Courtesy of DAIMLERCHRYSLER CORP.

The pressure cap is located on the coolant reservoir. The pressure cap is made of high strength plastic, and screws onto the coolant reservoir tank. The cap contains a springloaded pressure relief valve, and a spring loaded vacuum relief valve.
