Installation - SRT

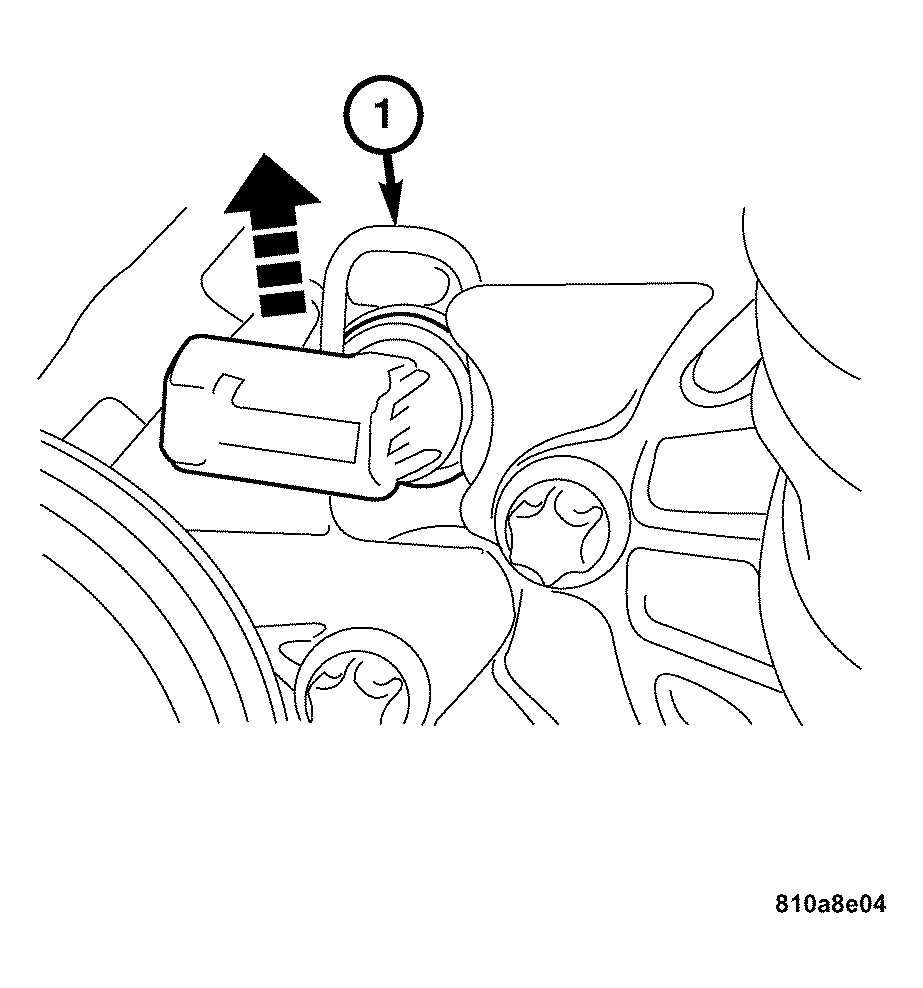

Fig 1: Locating Engine Coolant Temperature Sensor Retaining Clip

Courtesy of DAIMLERCHRYSLER CORP.

Clean any debris or corrosion from the engine coolant temperature sensor mounting surface.
Use a small amount of petroleum jelly to lubricate the sensor seal.
Install the engine coolant temperature sensor and retaining clip (1).

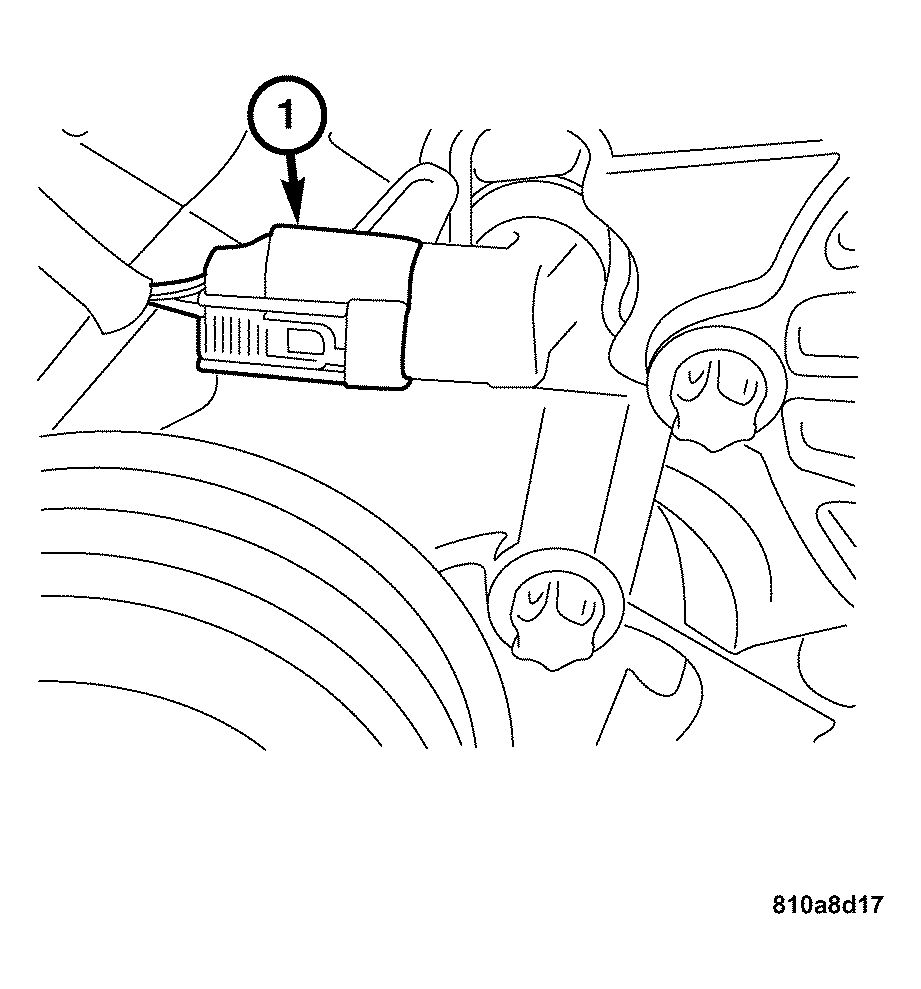

Fig 2: Disconnecting/Connecting Engine Coolant Temperature Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Connect the engine coolant temperature sensor harness connector (1).

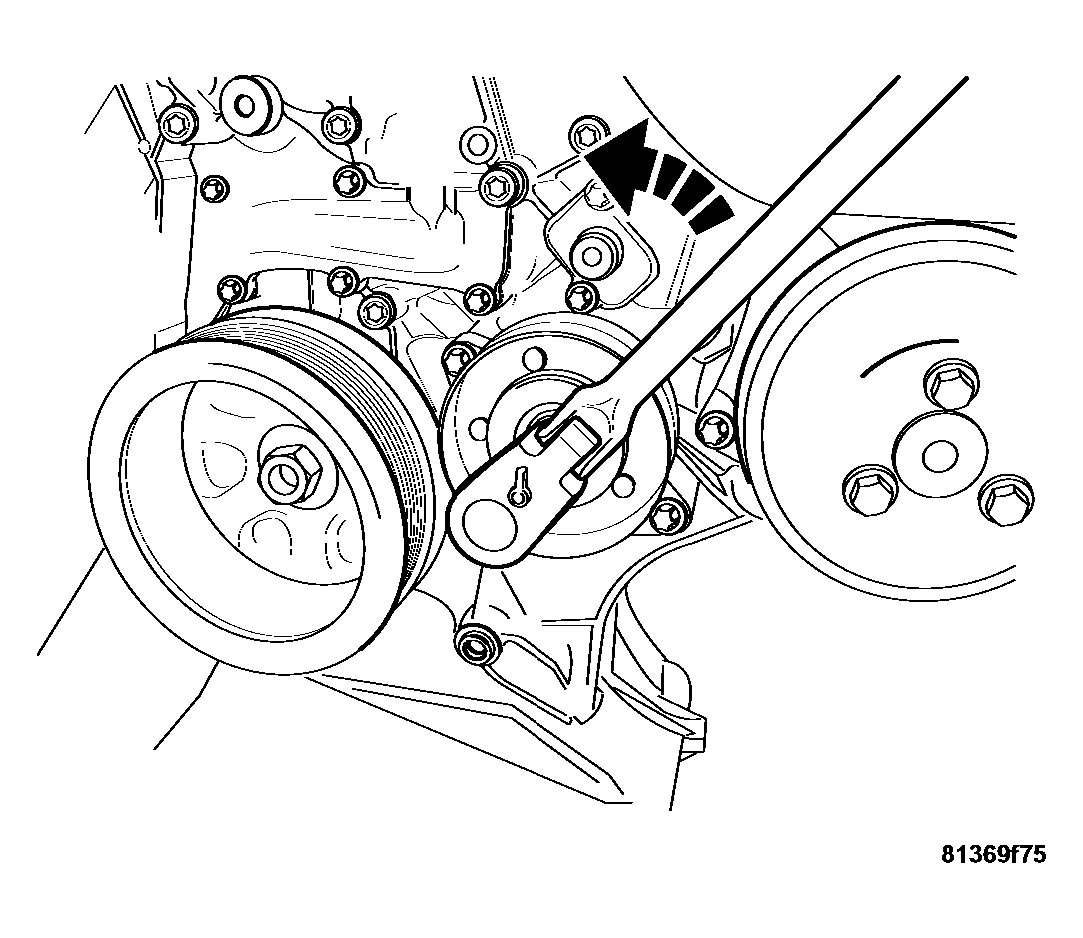

Fig 3: Identifying Engine Coolant Temperature Sensor & Accessory Drive Belt Idler Pulley
Courtesy of DAIMLERCHRYSLER CORP.
Install the accessory drive belt idler pulley. Tighten the accessory drive belt idler pulley bolt (2) to 20 N.m (15 ft. lbs.).

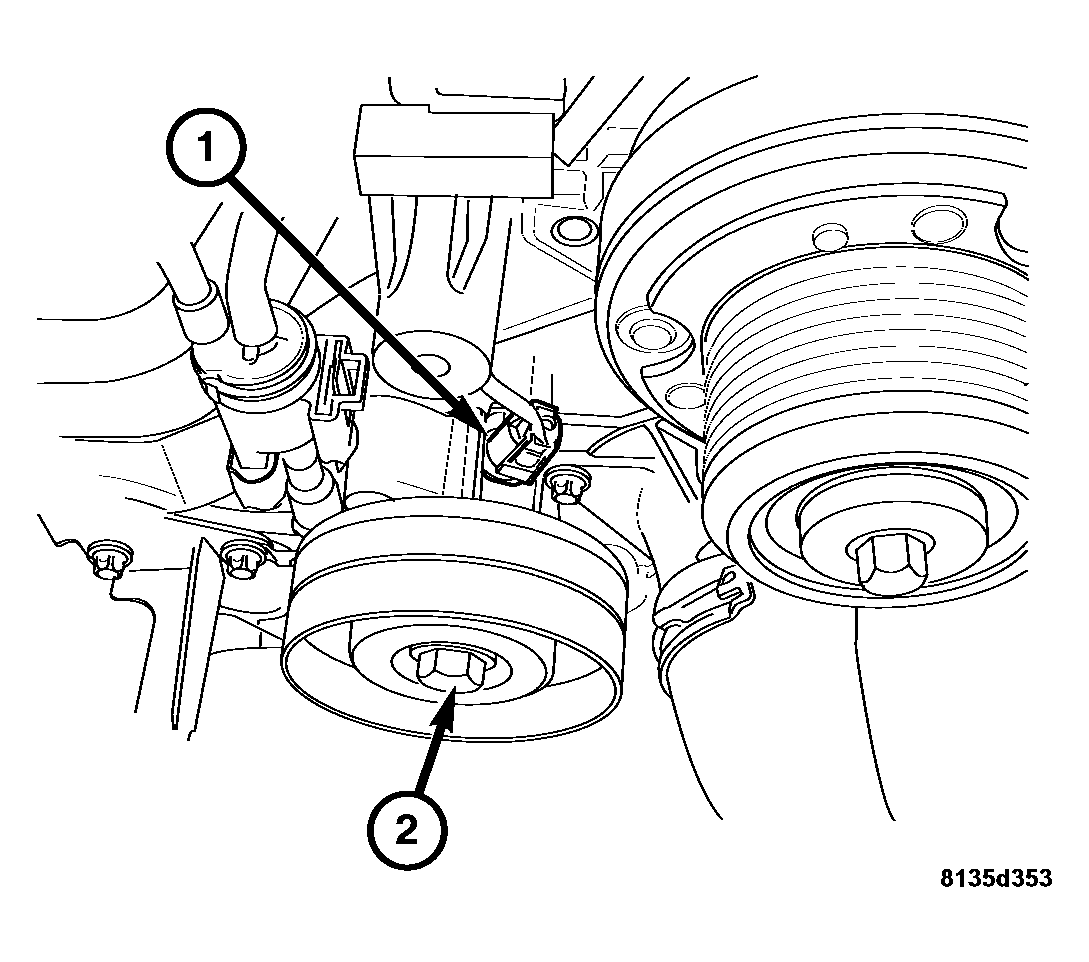

Fig 4: Identifying Supercharger Idler Pulley Retaining Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the supercharger idler pulley upper mounting bolt (1) and the lower mounting bolt (2). Tighten the mounting bolts to 20 N.m (15 ft. lbs.).

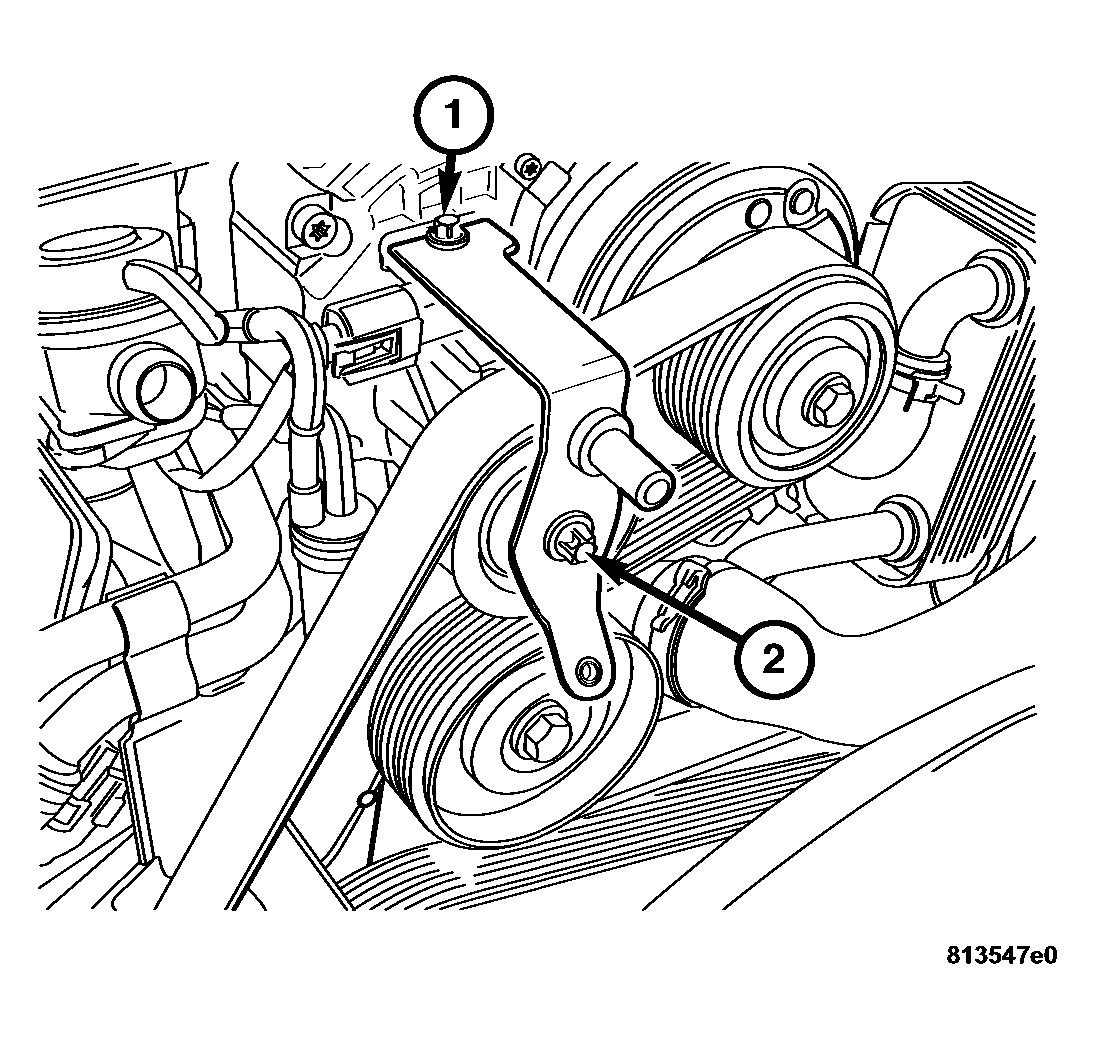

Fig 5: Removing/Installing Accessory Drive Belt
Courtesy of DAIMLERCHRYSLER CORP.
Install the accessory drive belt to the accessory drive belt pulley. (Refer to COOLING/ACCESSORY DRIVE - OPERATION) .

Fig 6: Identifying Air Pump Tube Assembly & Air Pump Tube Retaining Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the air pump tube assembly (1) and install the retaining bolts (2). (Refer to EMISSIONS CONTROL/AIR INJECTION/AIR PUMP INLET TUBE - INSTALLATION) .

Fig 7: Removing/Installing Engine Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the engine cover (1). Align the engine cover retaining clips to the engine rubber mounts, and push down firmly to connect engine cover to the rubber mounts.
NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
Refill the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
Connect the negative battery cable.
