Rear Suspension: Shock: Installation

Fig 1: Locating Rear Shock Absorber

Courtesy of DAIMLERCHRYSLER CORP.

Install the shock absorber (1) onto the lower control arm then install the bolt and nut (2). Tighten to 55 N.m (41 ft. lbs.).

Fig 2: Locating Cover Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the lower control arm plastic cover and bolt (1).
Slowly lower the vehicle while guiding the top of the shock into the mounting hole in the frame.

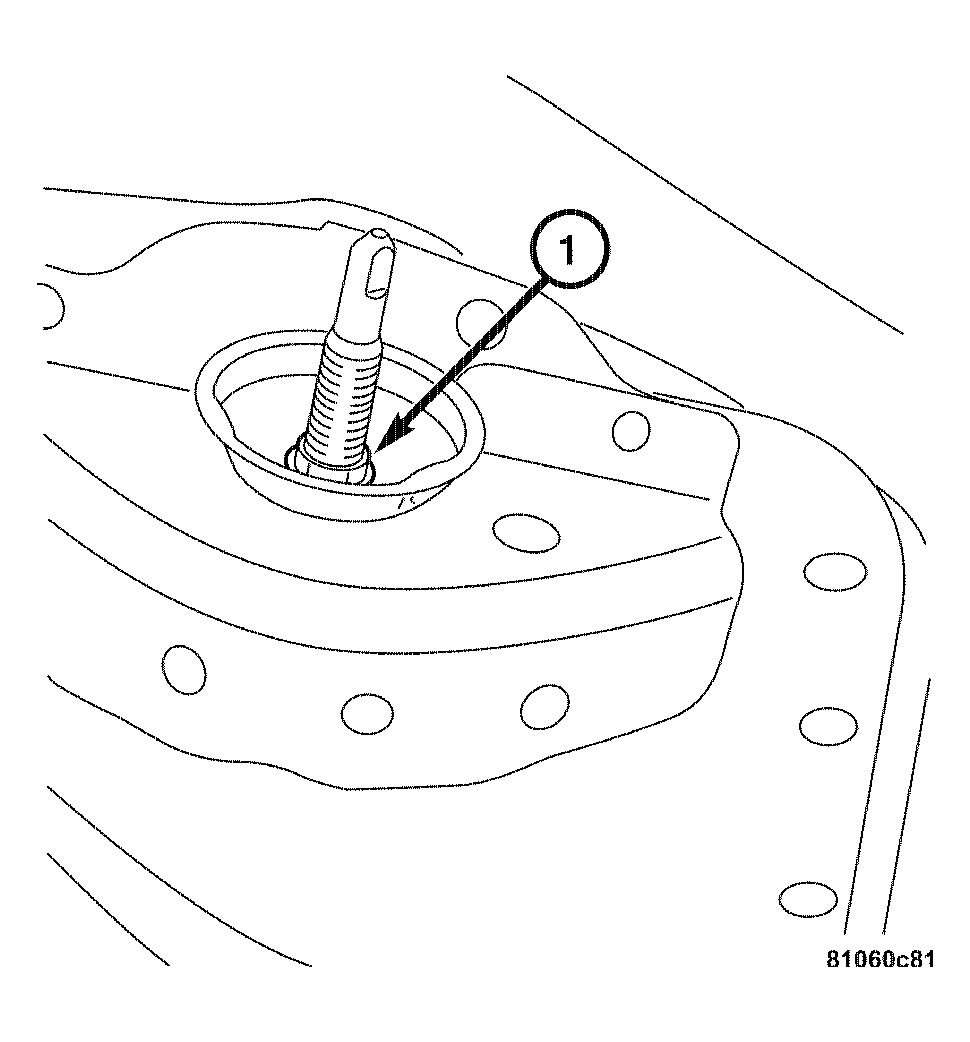

Fig 3: Locating Shock Absorber Mounting Hardware (Top)
Courtesy of DAIMLERCHRYSLER CORP.
Install the top shock absorber mounting hardware (1). Tighten to 18 N.m (13 ft. lbs.).
