Front Suspension: Hub/Bearing: Description

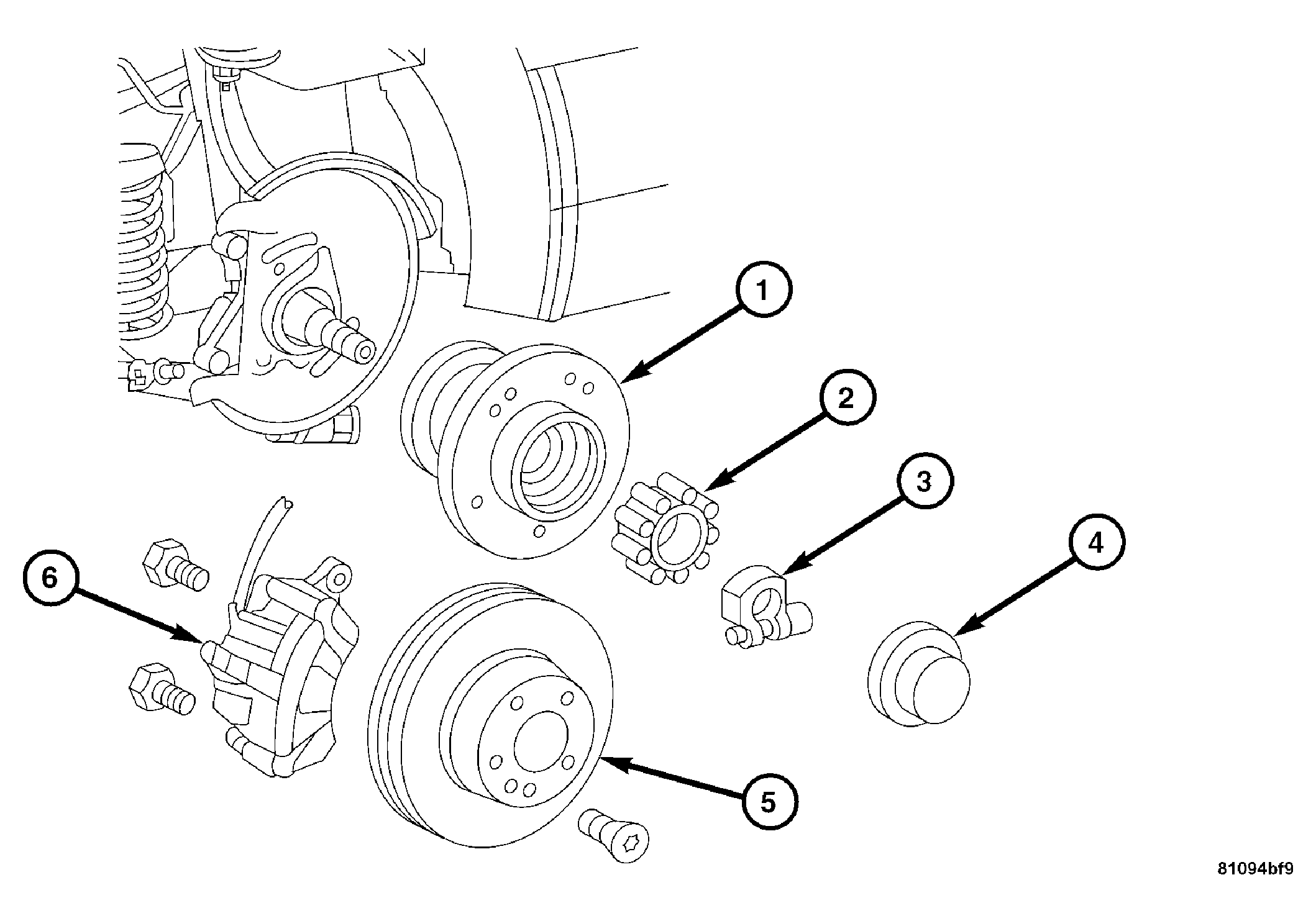

| 1 - HUB |
| 2 - BEARING |
| 3 - HUB NUT |
| 4 - DUST CAP |
| 5 - ROTOR |
| 6 - CALIPER |
The bearing (2) used in the front hub (1) of this vehicle is a roller bearing unit type. This assembly combines the front wheel hub (1) and the front wheel bearing (2) into a two piece unit. The hub nut (3) holds the bearing (2) and the front hub (1) to the steering knuckle's spindle. The hub nut (3) has a locking bolt that locks the hub nut into position on the spindle. The bearing is protected from outside elements by a metal dust cap (4). The bearings (2) can only be replaced as a set. The bearings and the wheel hub can be replaced independently of one another.
