Schematics And Diagrams

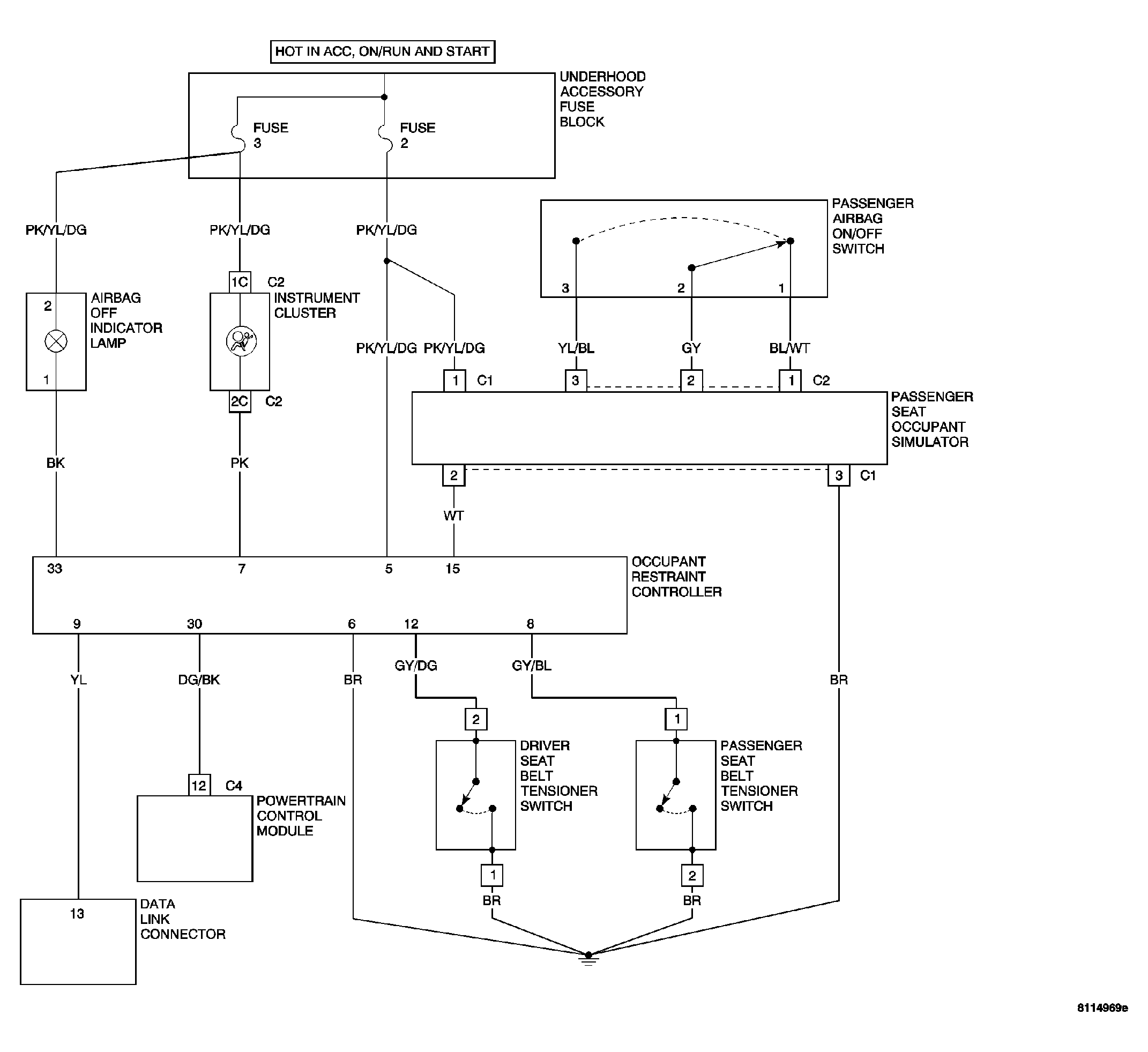

Fig 1: RESTRAINTS SYSTEM CIRCUIT DIAGRAM (1 OF 2)

GC0035572

Courtesy of DAIMLERCHRYSLER CORP.

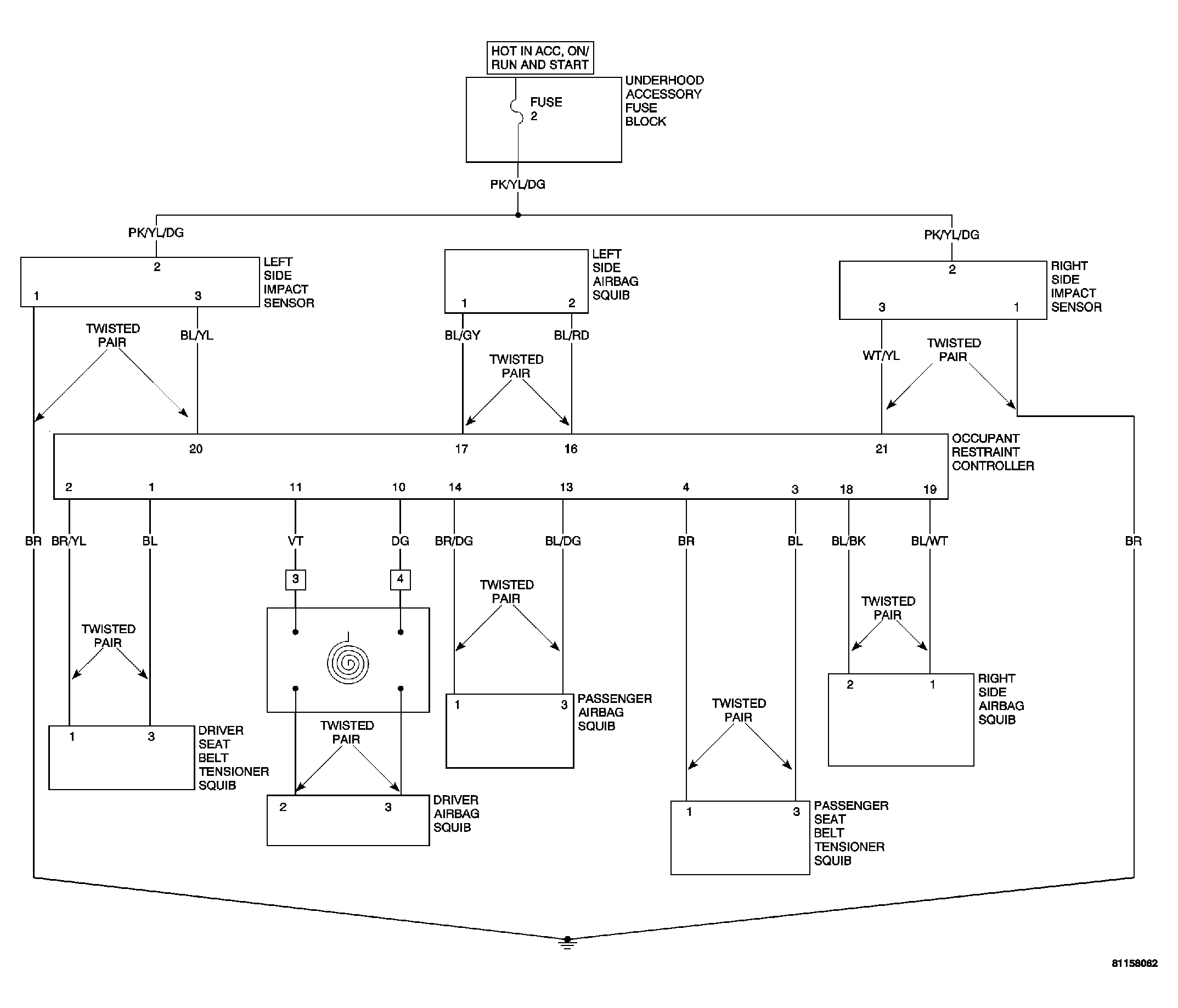

Fig 2: RESTRAINTS SYSTEM CIRCUIT DIAGRAM (2 OF 2)

GC0035573

Courtesy of DAIMLERCHRYSLER CORP.
