Right Side Airbag Squib Circuit: Notes

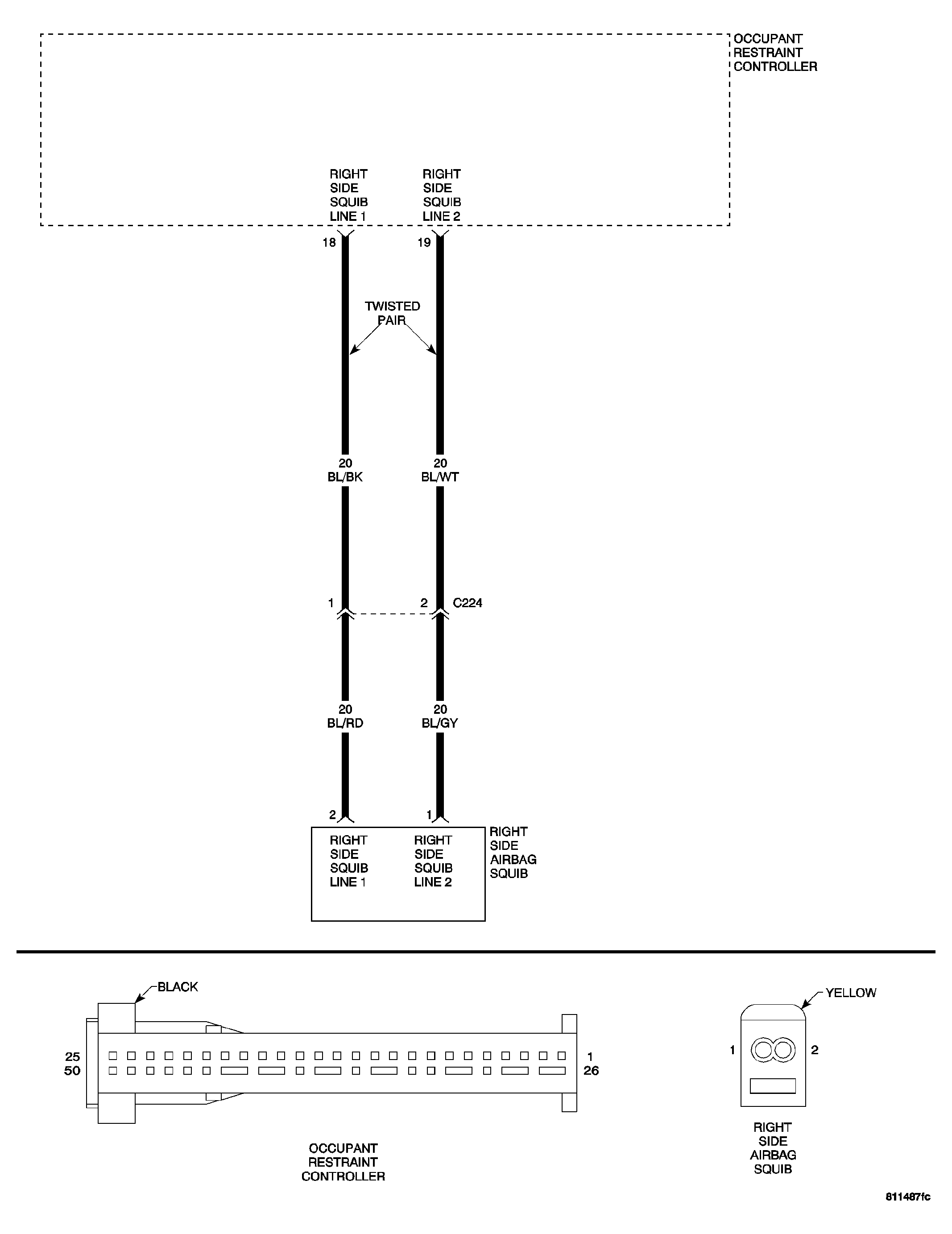

Fig 1: Right Side Airbag Squib Circuit Diagram

GC0035616

Courtesy of DAIMLERCHRYSLER CORP.
