Passenger Airbag On/Off Switch Signal Circuit: Notes

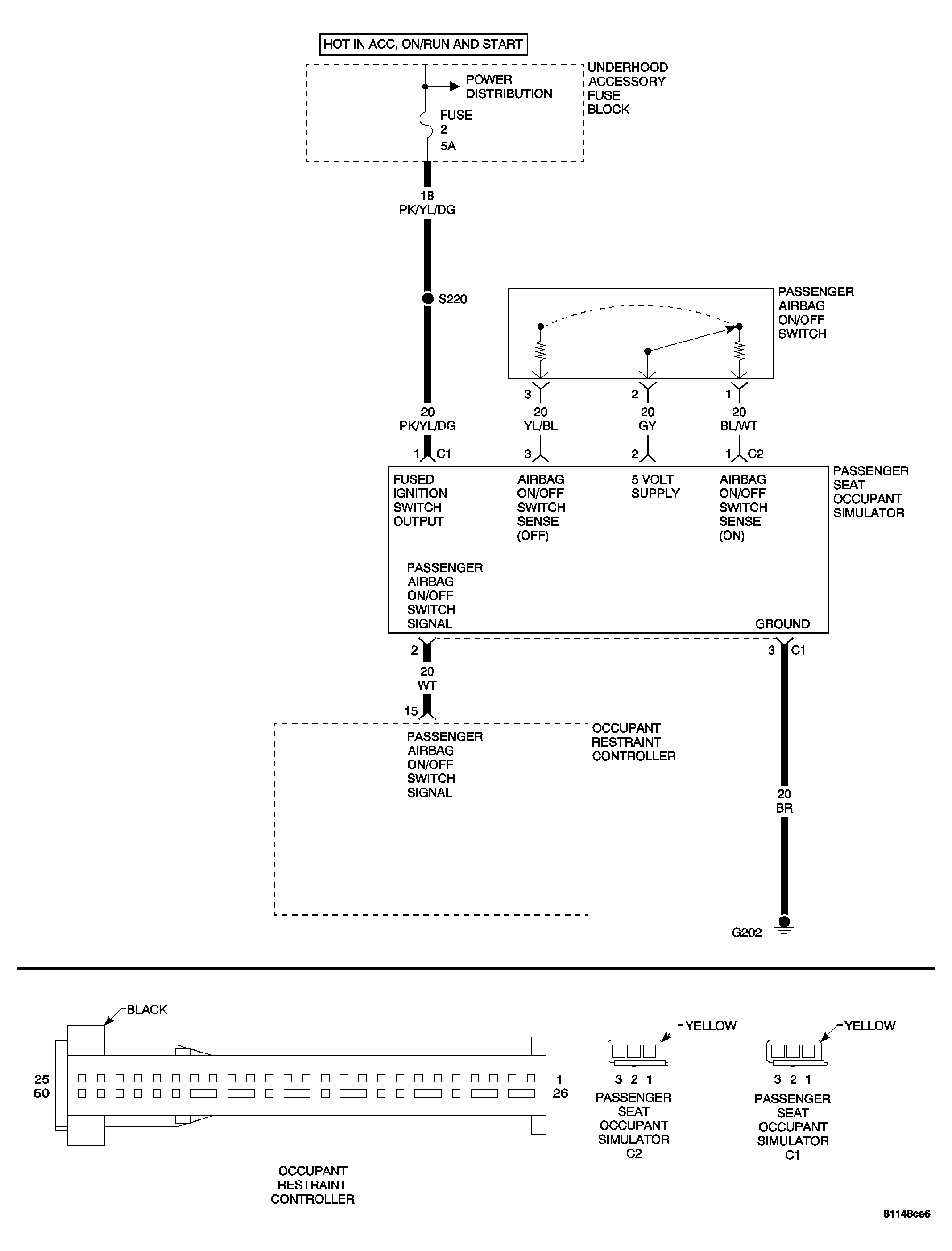

Fig 1: Passenger Airbag On/Off Switch Signal Circuit Diagram

GC0035630

Courtesy of DAIMLERCHRYSLER CORP.
