(P0123) Apps Signal 1 Circuit High: Notes

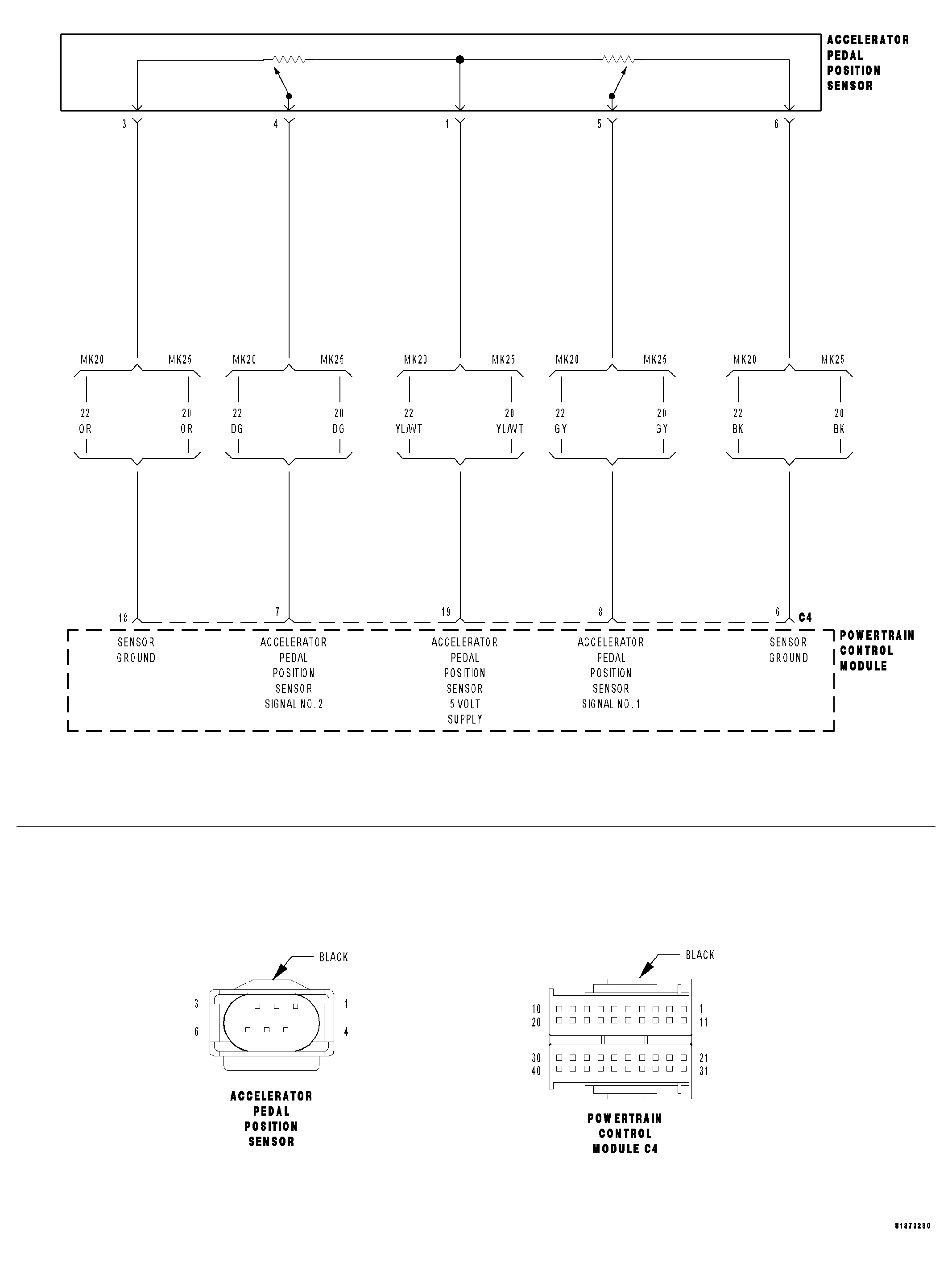

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic

GC0034105

Courtesy of DAIMLERCHRYSLER CORP.
