(P0120) Electronic Throttle Control Motor Performance: Notes

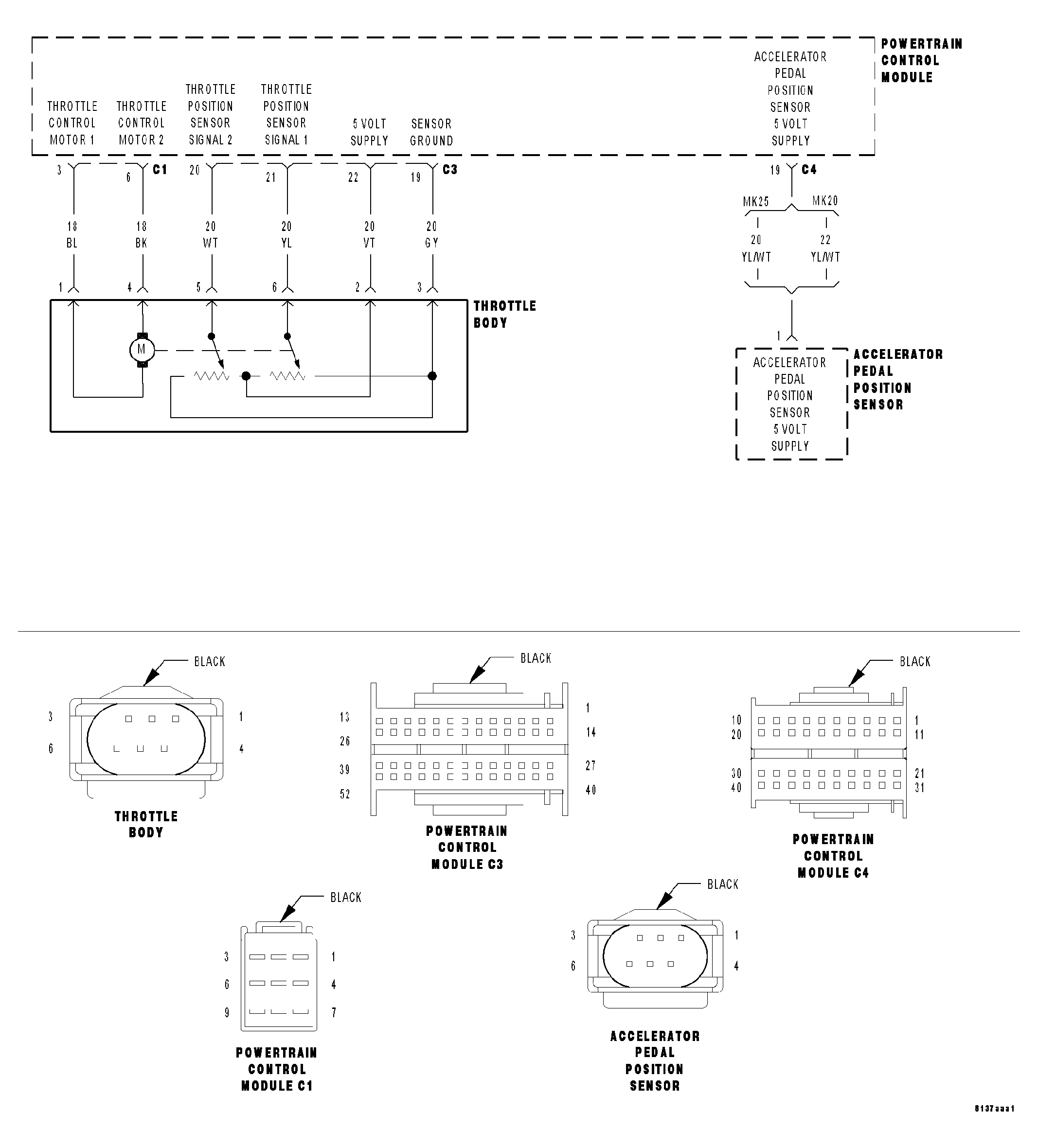

Fig 1: Throttle Body & APP Sensor Circuit Schematic

GC0034086

Courtesy of DAIMLERCHRYSLER CORP.
