Timing Chain: Removal

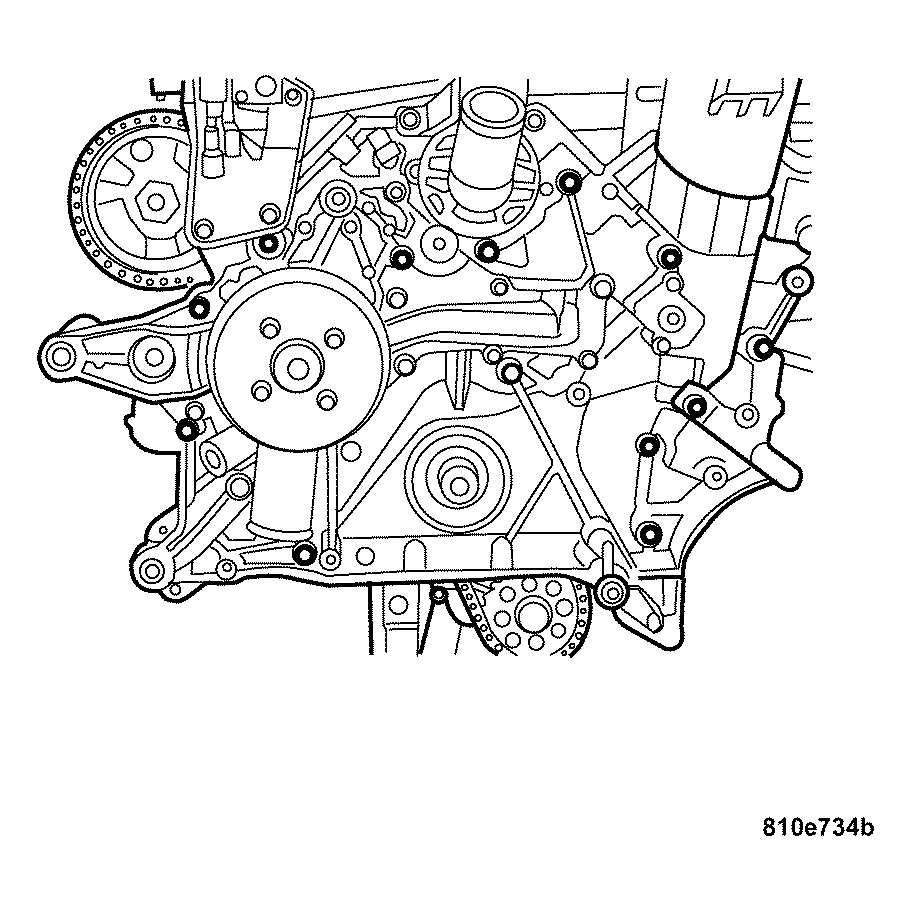

Fig 1: Identifying Timing Chain Cover

Courtesy of DAIMLERCHRYSLER CORP.

Remove the timing chain cover. (Refer to ENGINE/VALVE TIMING/GEAR HOUSING COVER - REMOVAL) .

Fig 2: Identifying Oil Pump Chain Tensioner & Oil Pump Drive Chain
Courtesy of DAIMLERCHRYSLER CORP.
Remove the oil pump drive chain (2) and tensioner (1). (Refer to ENGINE/LUBRICATION/OIL PUMP - REMOVAL) .

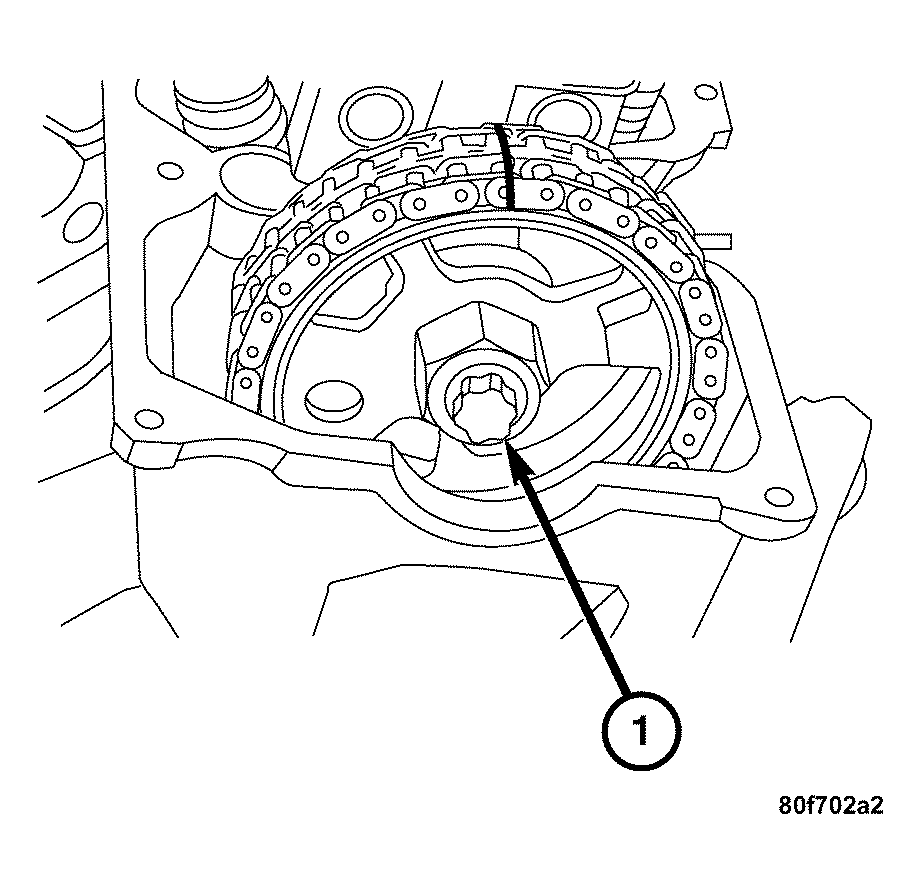

Fig 3: Removing/Installing Camshaft Sprocket Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the left and right camshaft sprocket bolts (1).
Remove the timing chain and camshaft sprockets.

Fig 4: Identifying Engine Timing Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove the timing chain crankshaft sprocket (2).
Clean and inspect all gasket surfaces, chain guides, and sprockets for wear or damage. Repair or replace as necessary.
